FEATURES & BENEFITS:

• Designed, built and priced for professional use in a commercial setting (and for the serious at-home enthusiast), the EZ-Lift Repair Stand makes bicycle repairs simple.

• Handmade of the finest, domestically-sourced materials at our factory in Washougal, Washington, the EZ-Lift is 100% Made in the USA!

• Perfect for servicing e-bikes and heavier bikes without straining.

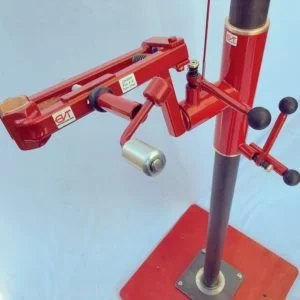

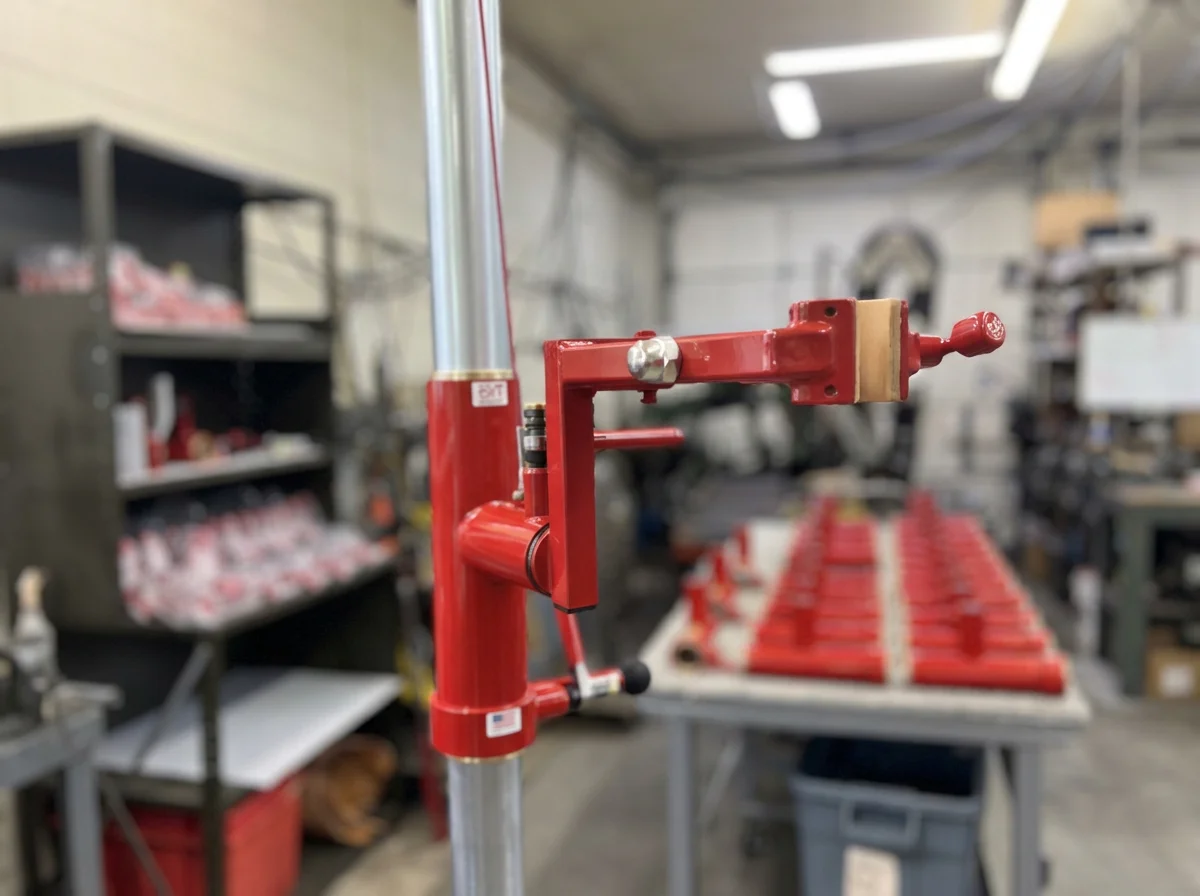

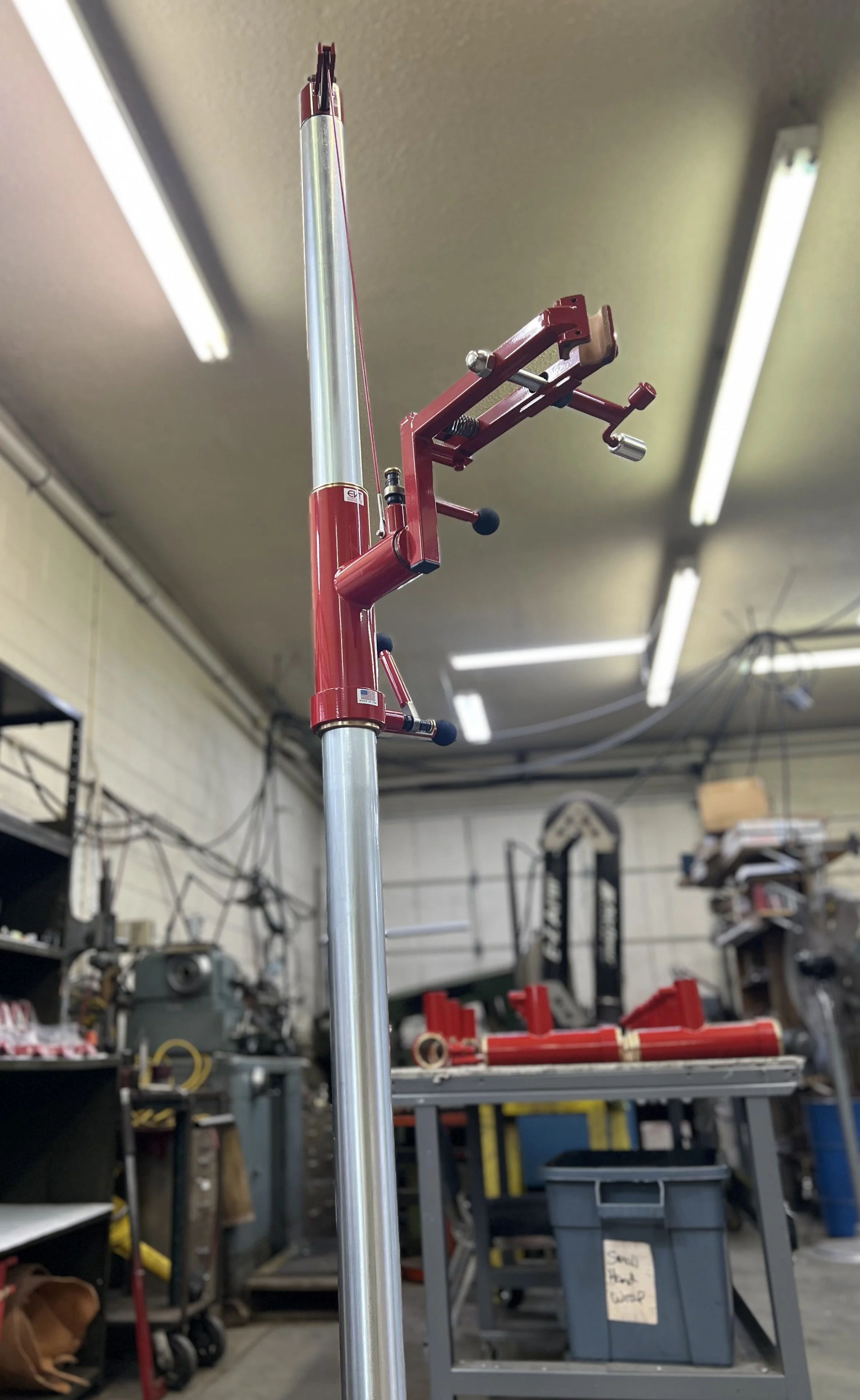

• Highly adjustable, this lift-assisted bicycle repair stand includes EVT’s Right Arm Repair Clamp, featuring seat-post-only clamping and offset rotation.

• The Right Arm Repair Clamp is compatible with all seat posts and features balanced rotation that takes up minimal space.

• Only 2" of exposed seat post required - no more raising the seat to place your bike in a work stand. Never lose your seat height adjustment again!

• Clamp the bike while it’s on the floor, before you lift. No more supporting and stabilizing the bike while you try to clamp it!

• Ergonomically-friendly, it’s easily adjustable from the floor to more than seven feet high to accommodate the mechanic’s ideal posture while they repair all bicycle areas.

• Conservative estimates show one EZ-Lift Repair Stand can save a busy service department at least 78 hours per year.

• See the EZ-Lift in action on our YouTube channel.

MORE DETAILS:

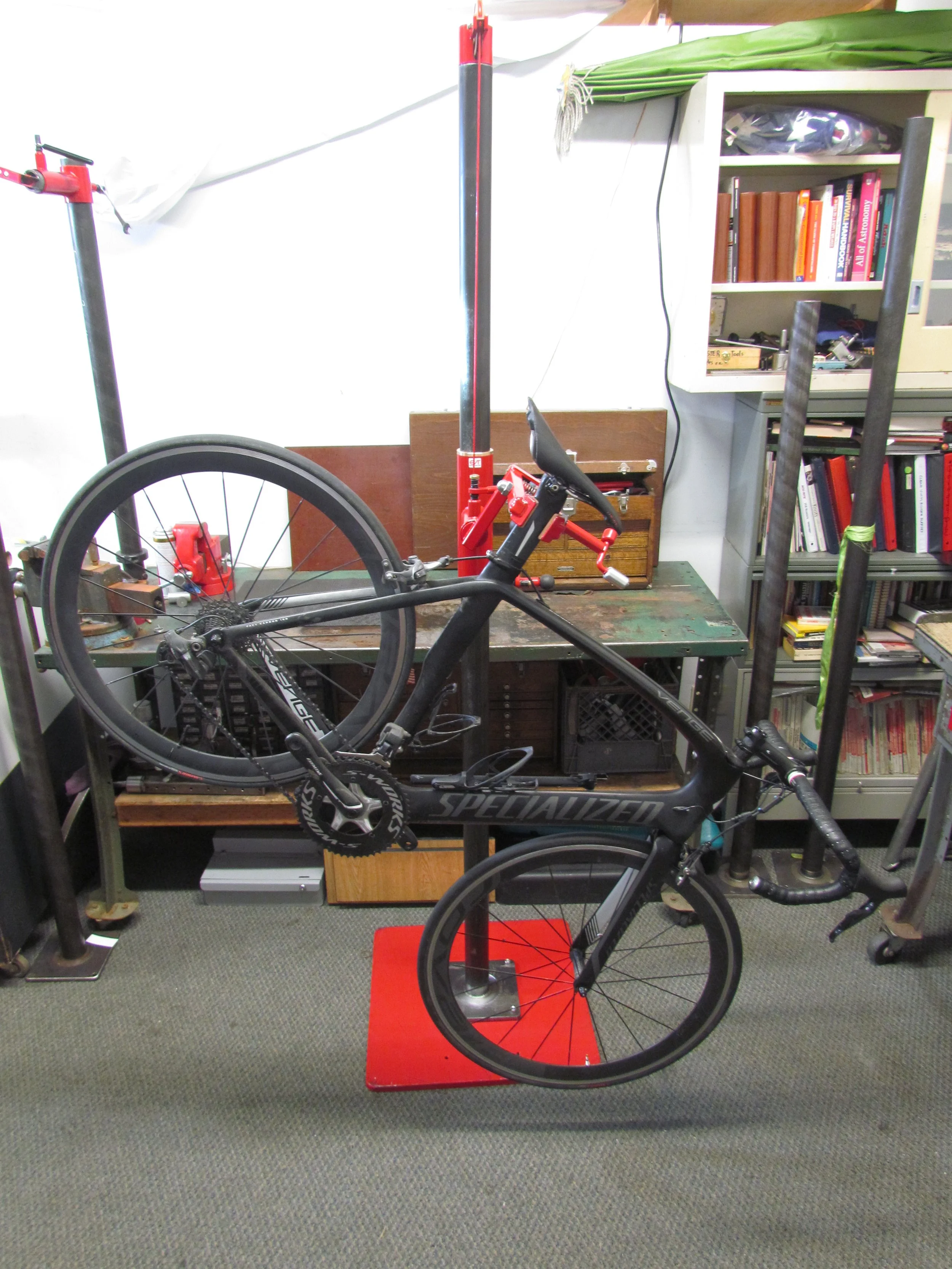

• Versatile design may be used for a variety of bicycles, from road bikes to e-bikes. Beneficial to frame-builders as well.

• The counterbalance system of the EZ-Lift Single standard provides 18.8 lbs of lifting assistance.

• Our EZ-Lift w/ heavy duty weight version has a longer counterweights and provides 35.7 lbs of lifting assistance. Please email or call EVT if you’d like more details. Note: While the HD weights provide additional lift assist, you will lose a bit of travel due to the longer counterweight and it will take more effort to push the bike down.

• Mechanism is air-damped to control speed.

• No electricity required. Apocalypse-Approved!

• Close tolerances ensure minimal friction and fingertip pressure is enough to position the clamp.

• Bronze bushings for smooth action.

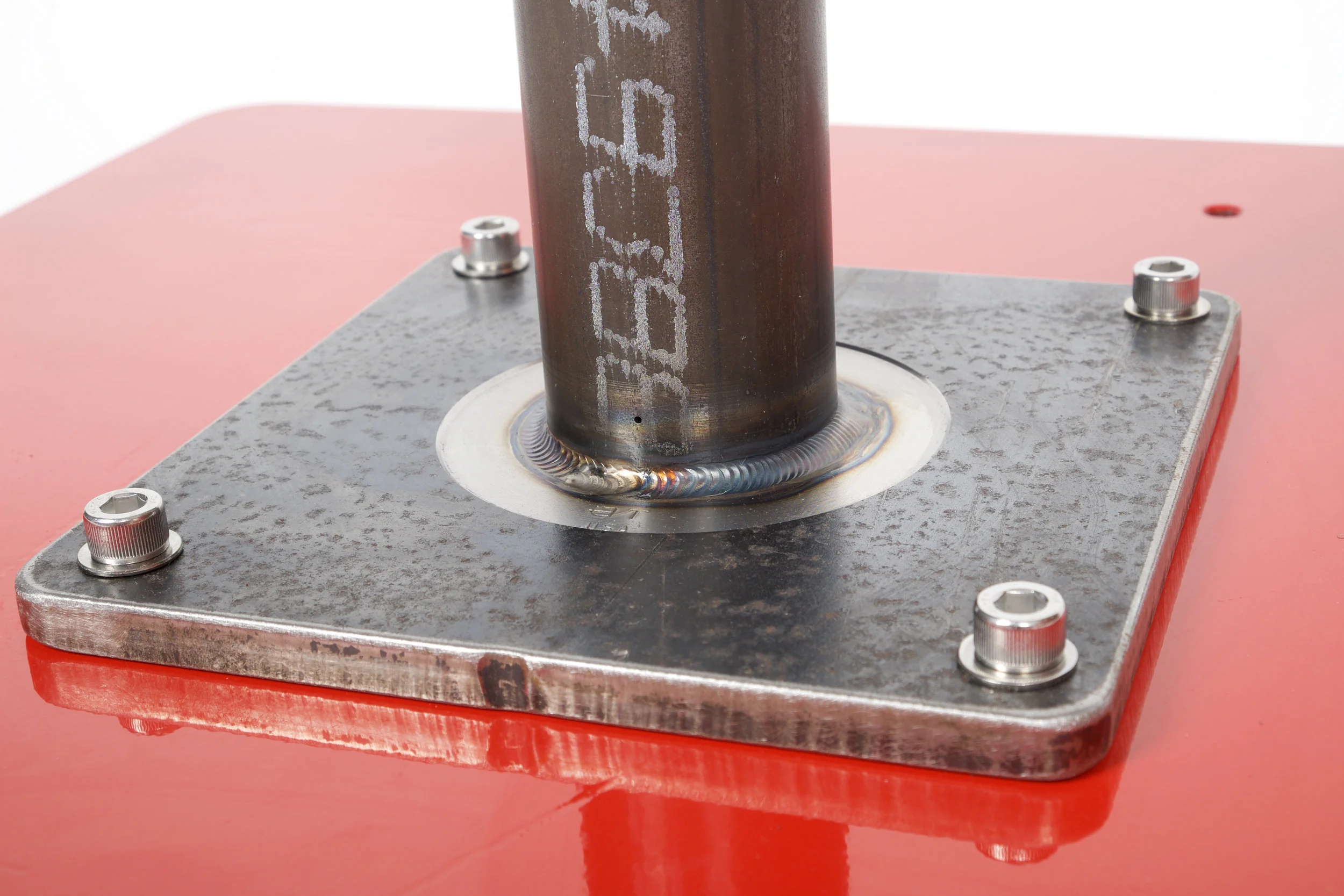

• Baseplate features rounded edges.

• EZ-Lifts are powder-coated in our signature EVT Red for a high-quality, durable finish that protects the roughest, toughest equipment.

• Custom colors are also available at an additional cost. In addition to Black & Clear Coat, our vendor uses Prismatic Powders to match just about any color you desire. Email or call EVT for more details.

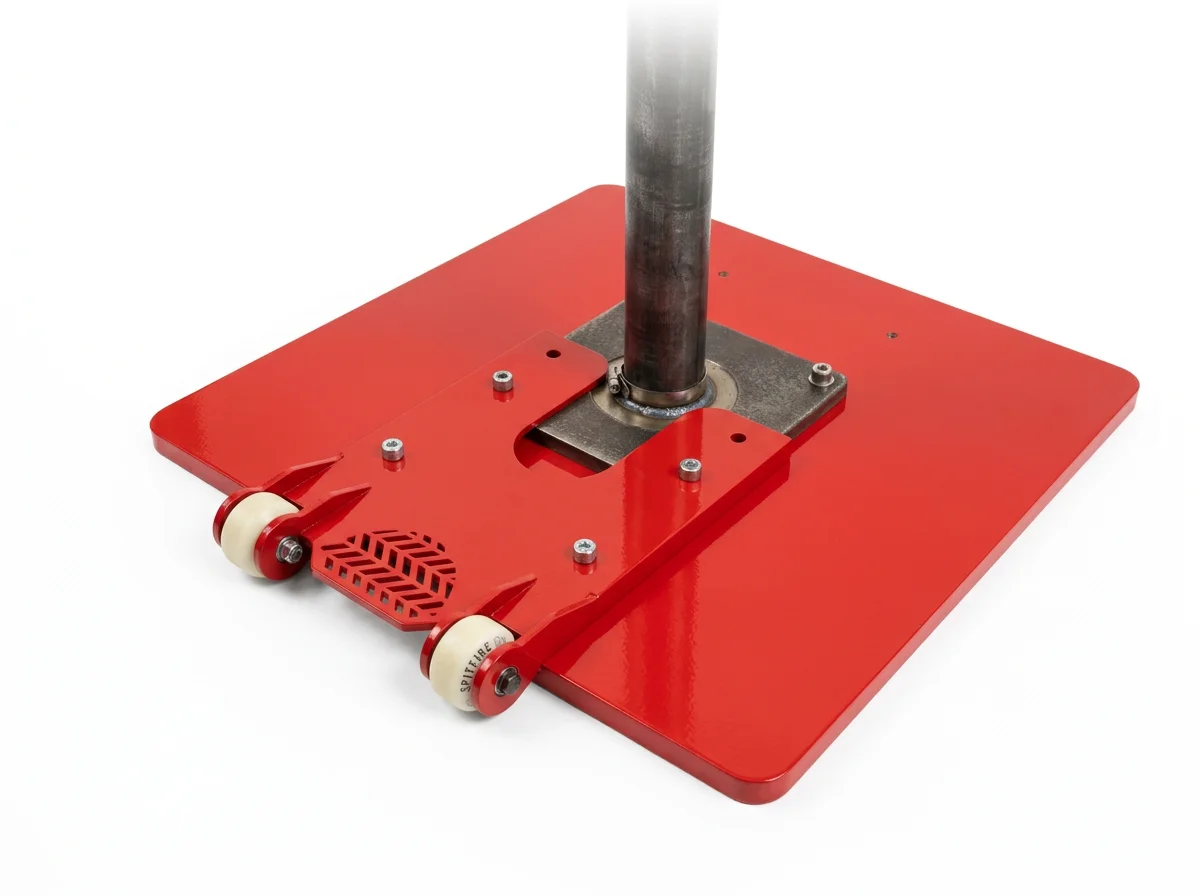

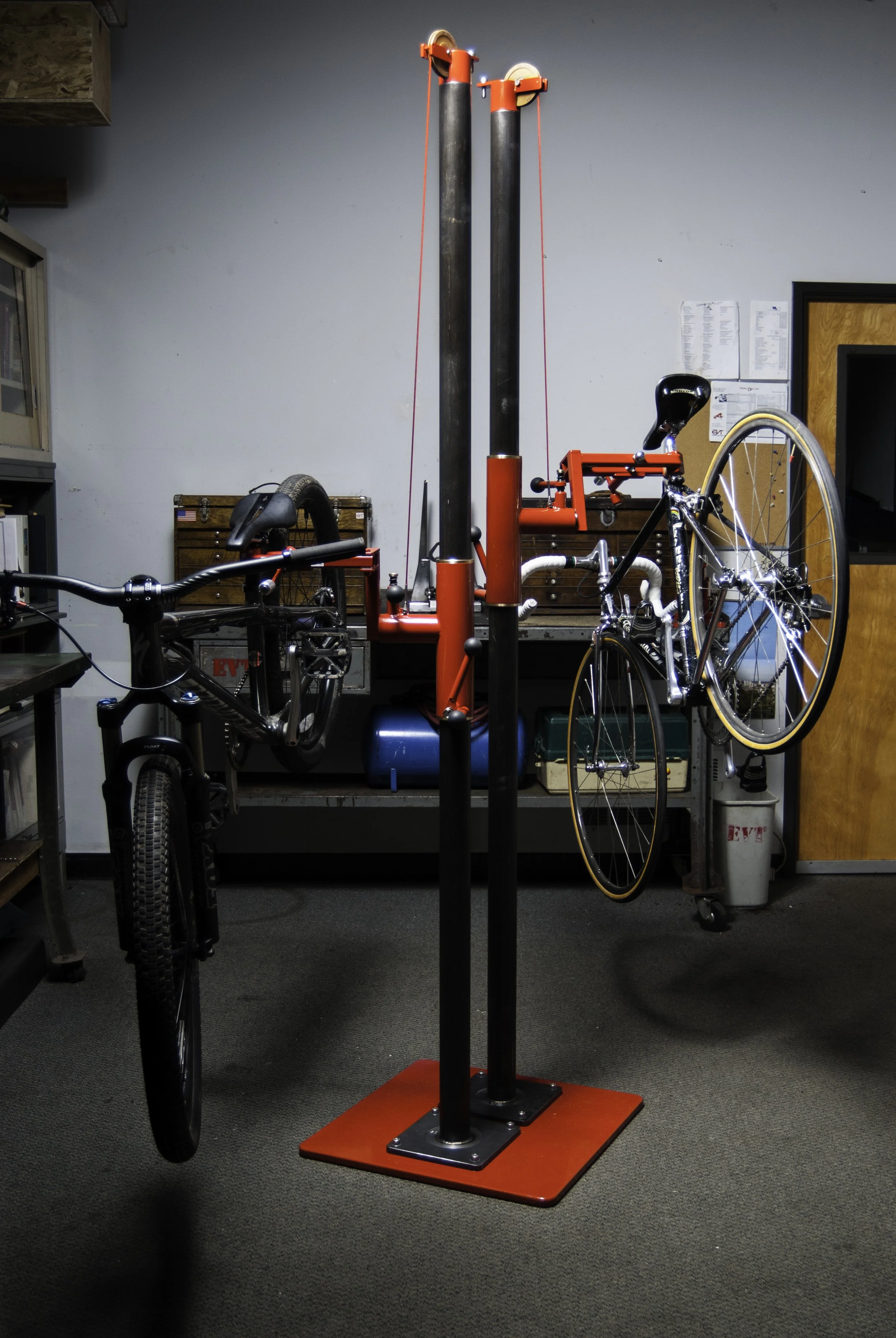

• The baseplate comes pre-drilled for a variety of configurations: Single stand mounted on center; single stand mounted off-center; two stands mounted back-to-back; or two stands mounted side-to-side.

• Unparalleled Lifetime Warranty.

• An Instructions Manual is emailed with every EZ-Lift order, or you can find it here at: EZ-Lift Repair Stand Manual

SPECIFICATIONS FOR MOST COMMONLY PURCHASED UNITS:

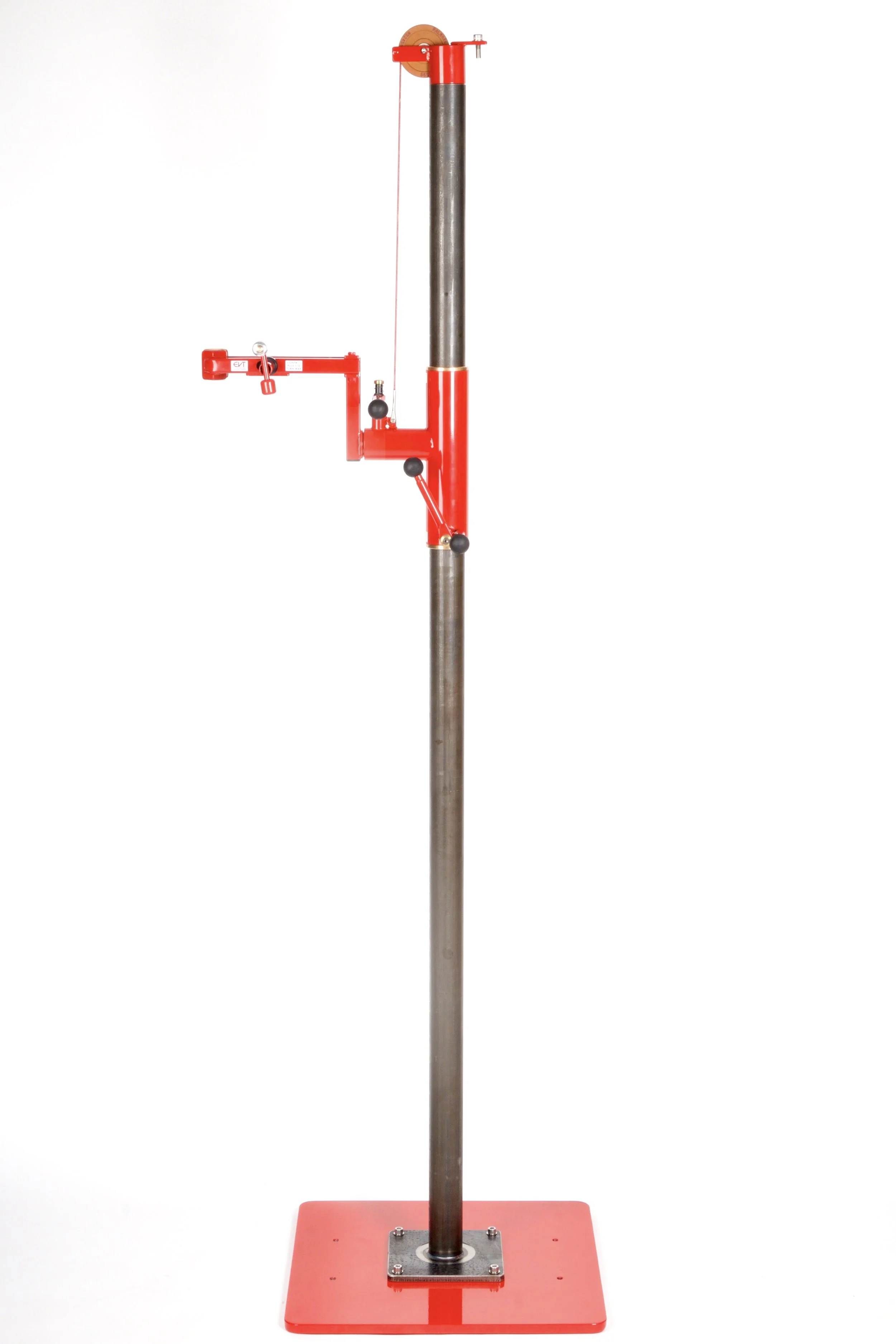

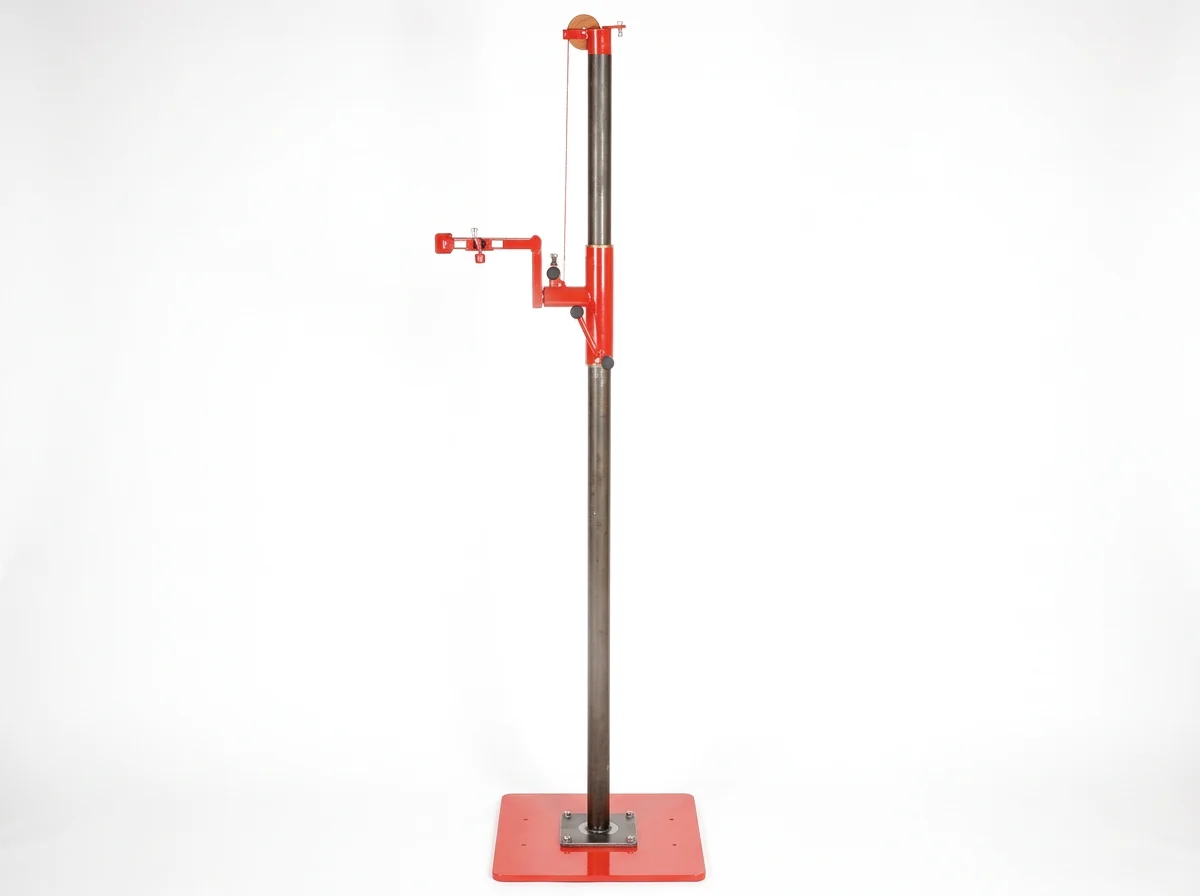

• Total repair stand height (from floor to top of pulley, which includes baseplate): 88 1/4” or 224.16 cm

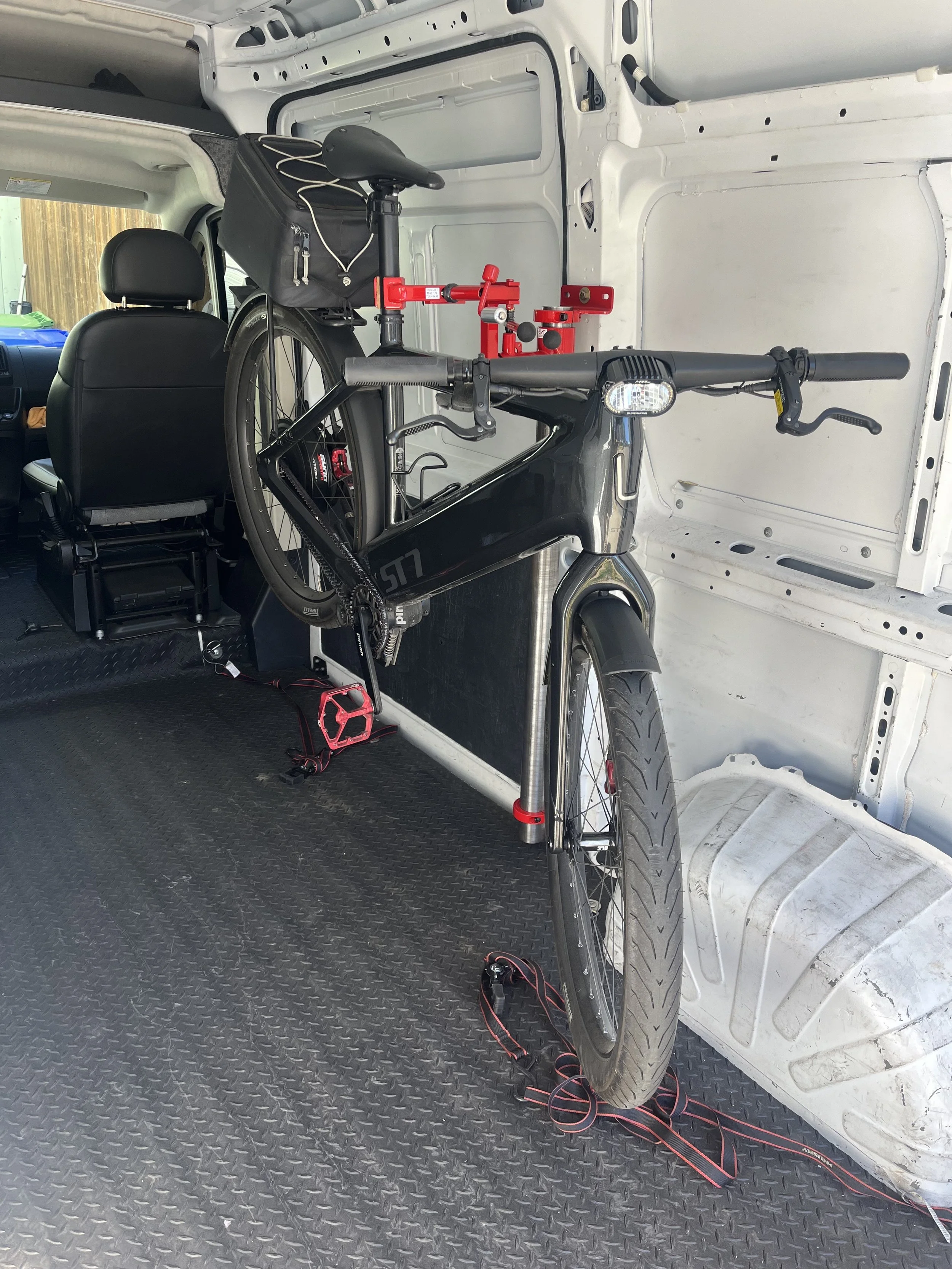

• The EZ-Lift can be cut shorter to fit lower ceilings, like for a mobile repair van. Please inquire.

• We now offer a wider-choice of cable lengths to make your experience work best for you. Please inquire.

• Baseplate dimensions: 22.5” x 22.5” x .75”

SHIPPING PECIFICATIONS FOR MOST COMMONLY PURCHASED UNITS:

• UPS (for a Single EZ-Lift) shipping weight and dimensions:

  • Small parts: 22 lbs = box 17” x 13” x 11”; DHL = pallet)

  • Main column/upright tube: 69 lbs = box 85” x 9” x 9”; DHL = pallet)

  • Baseplate: 112 lbs = box 23” x 23” x 1”; DHL - pallet)

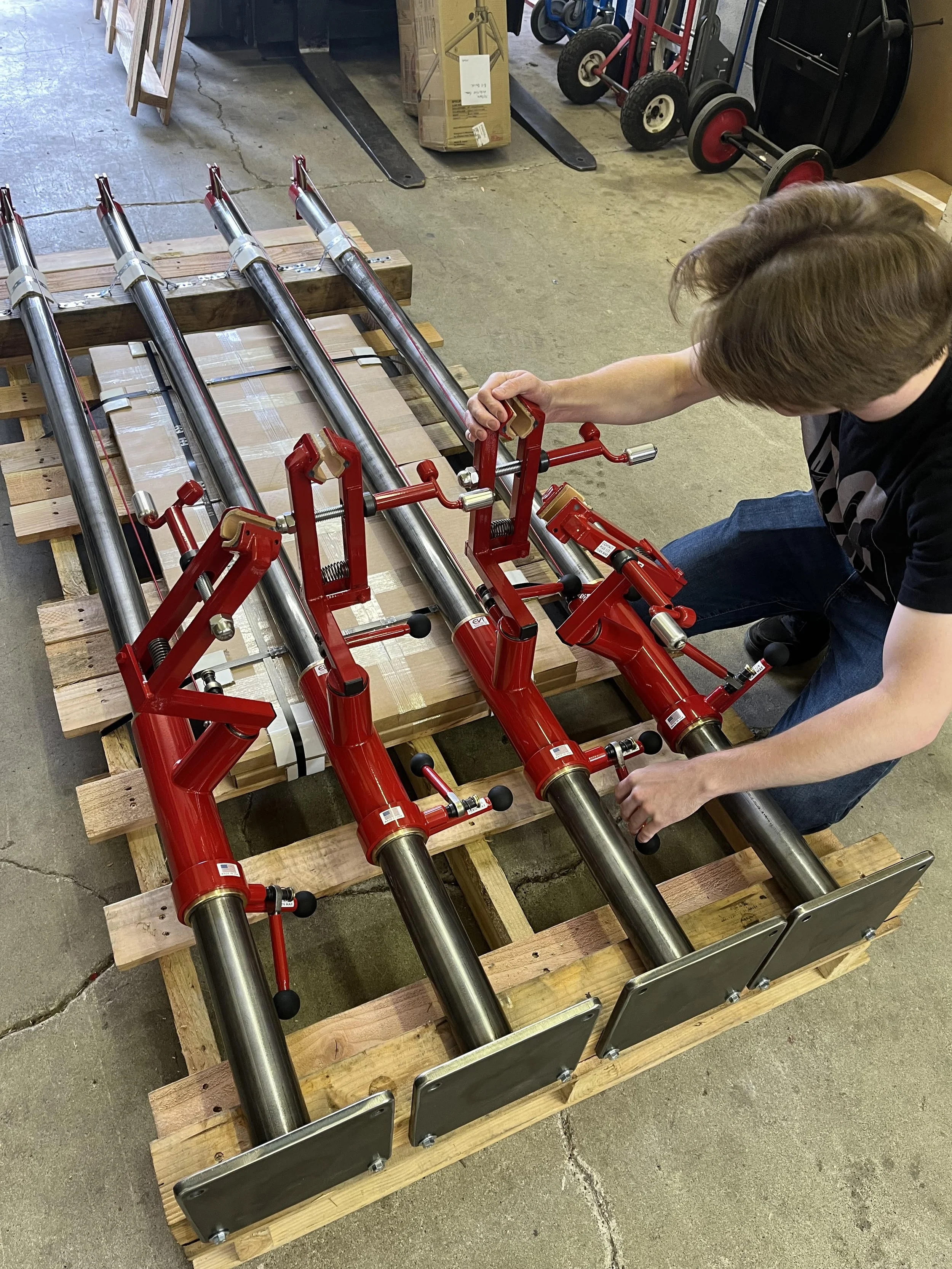

• Palletized (for a TWIN or more than one unit) shipping weights and dimensions:

  • All parts come on a pallet, dimensions 40” x 90” x 28”.

  • Does your shop have a loading dock or forklift?

    Yes = Shipper applies no additional charge.

    No = Shipper applies a $100 additional charge.

ORDERING & SHIPPING: Choose your configuration and place your order on the website, over the phone or via email.

When your stand is just about ready, we will contact you to verify the shipping address and to collect any balance that may be owed, which is usually the cost of shipping.

• Prices shown on website do not include shipping costs, which will be gathered within 30 days of the ship date and must be based on your exact location.

• Prices shown on website do not include handling costs which consist of an additional $100 per EZ-Lift Single and $150 per EZ-Lift Twin.

• Although we won’t know your actual S & H costs until we find the best quote possible from our carriers (UPS, DHL or FedEX), we can provide an approximate guess based on experience from shipping in the contiguous United States:

  • per EZ-Lift Single: $350-$450

  • per EZ-Lift Twin: $500-$550

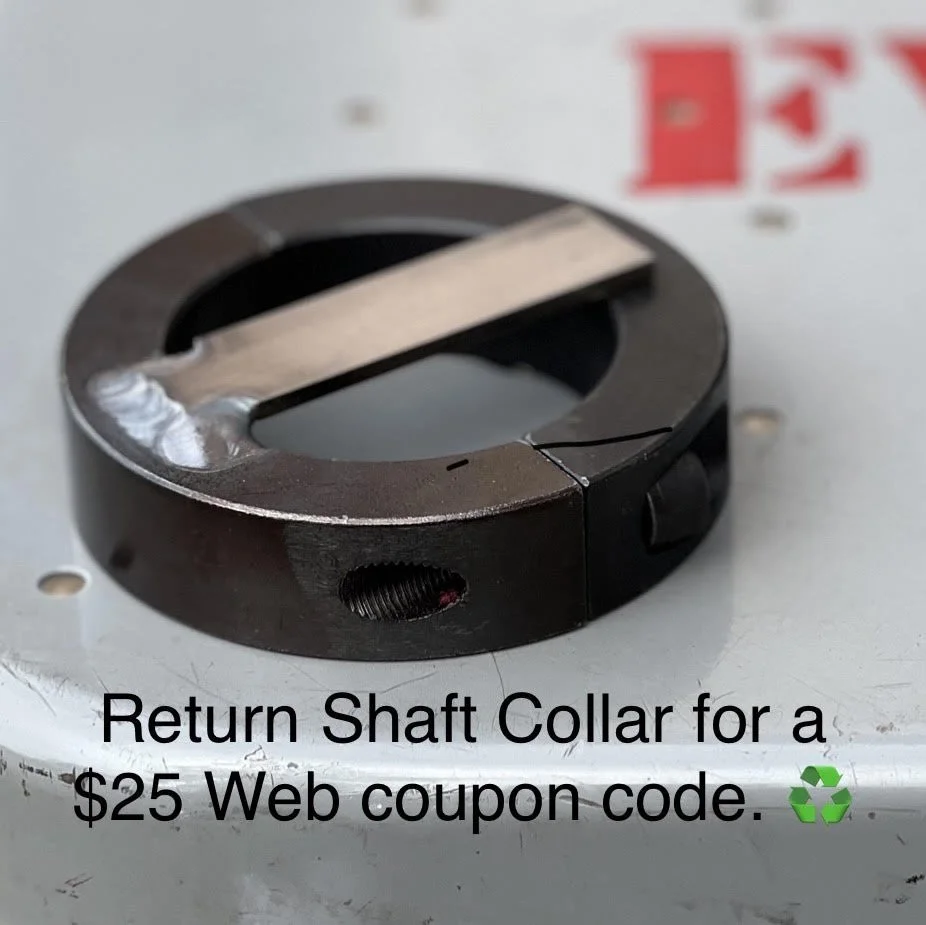

• When shipping UPS, we use a recyclable ‘shaft collar’ to protect your shipment. If you return it to EVT at your expense with a business card or contact information, we’ll email you a website coupon code for $25 your next purchase. See picture of shaft collar above.

• Customers may have the option of arranging their own 3rd party carrier. Please contact us to begin the conversation.

• Customers are welcome to pick-up from our location here in Washougal, Washington. Please note: WA Sales Tax will apply (8.4%).

• Alaska, Hawaii and Canada: Please inquire about shipping options by contacting us: info@efficientvelo.com -or- 971-258-0925.




• International / Overseas: Please DO NOT PLACE AN EZ-LIFT ORDER VIA OUR WEBSITE. Each EZ-Lift order requested to be shipped internationally will be considered on a case-by-case basis. Please contact us directly to begin the conversation: info@efficientvelo.com -or- 971-258-0925.

MAINTENANCE TIPS:

• For maintenance, we recommend using our Arkansas Whetstone to smooth any nicks or burrs that may develop on the upright tube. Keep the vertical pole lubricated using coconut oil or Boeshield T-9.

•  Frame Saver (LPS-3): Use this on parts that don't slide against each other, like the baseplate. This is pretty heavy-duty stuff, but we've found it works well for corrosion. We spray tools with it before they ship to salty places.

•  Boeshield T-9: Use this on all the moving parts, and squirt inside the upright tube periodically as well. We use the aerosol can here at the factory and then wipe off the excess with a paper towel.

• Moly EP Grease (CV Joint Grease): Use this on the Right Arm receptacle - where the Right Arm Clamp plugs into the stand. If this socket gets too dry, it can mar up the stand or the arm and it will eventually get stuck.

  Please email us at info@efficientvelo.com with any questions you may have.
