EZ-LIFT Repair Stand

EZ-LIFT Repair Stand

from 2,000.00

Call 971-258-0925 or Email: info@efficientvelo.com for availability or to place an order. The EZ-Lift Repair Stand is a handmade item and has a waiting list of approximately 2-3 months. A $500 deposit is required to secure a spot on the waiting list. This can only be done by calling or emailing us - this item is not available for web orders at this time.

Signature Series*

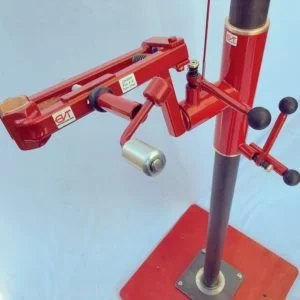

  • Highly-adjustable, lift-assisted bicycle repair stand solution that includes EVT’s Right Arm Repair Clamp.

  • Available in two configurations:

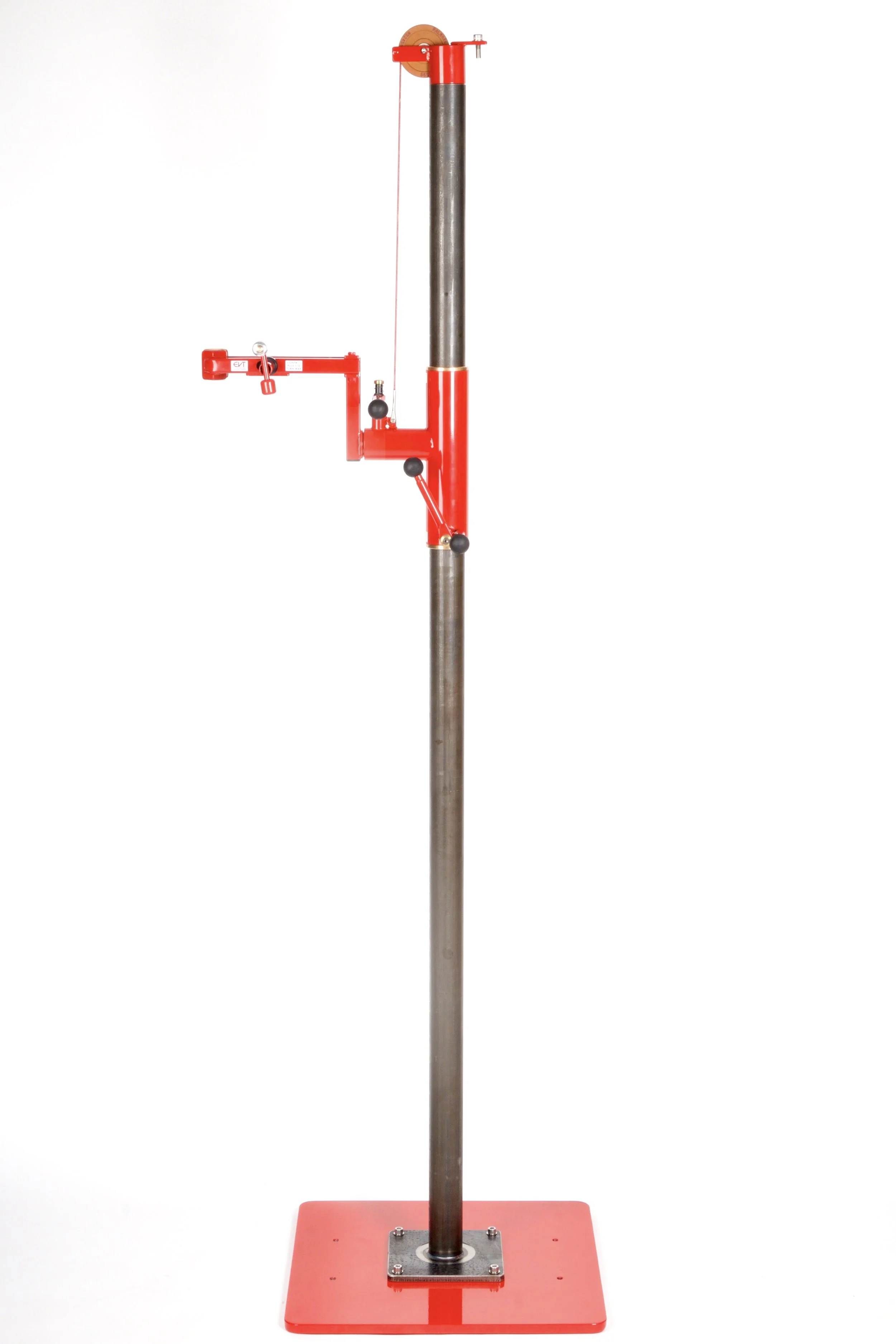

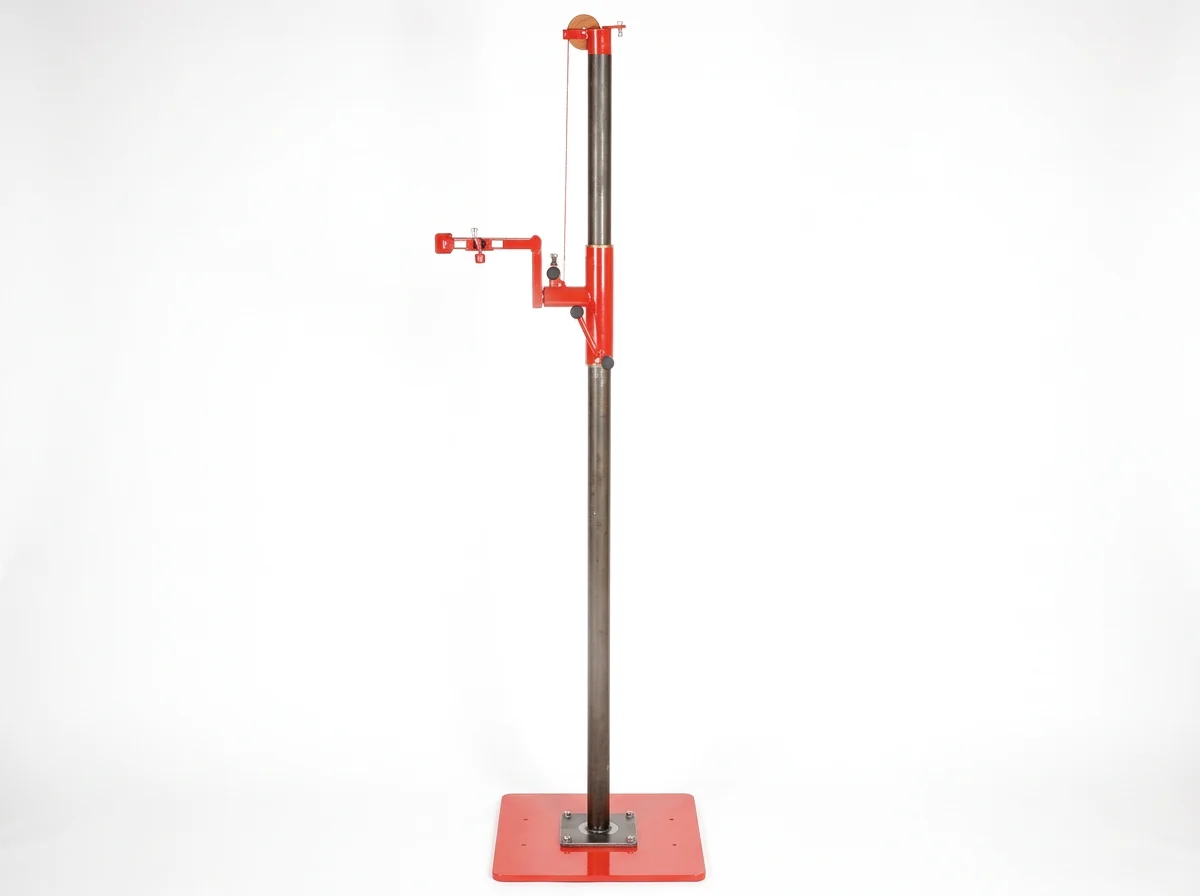

    • EZ-Lift = single stand mounted to baseplate.

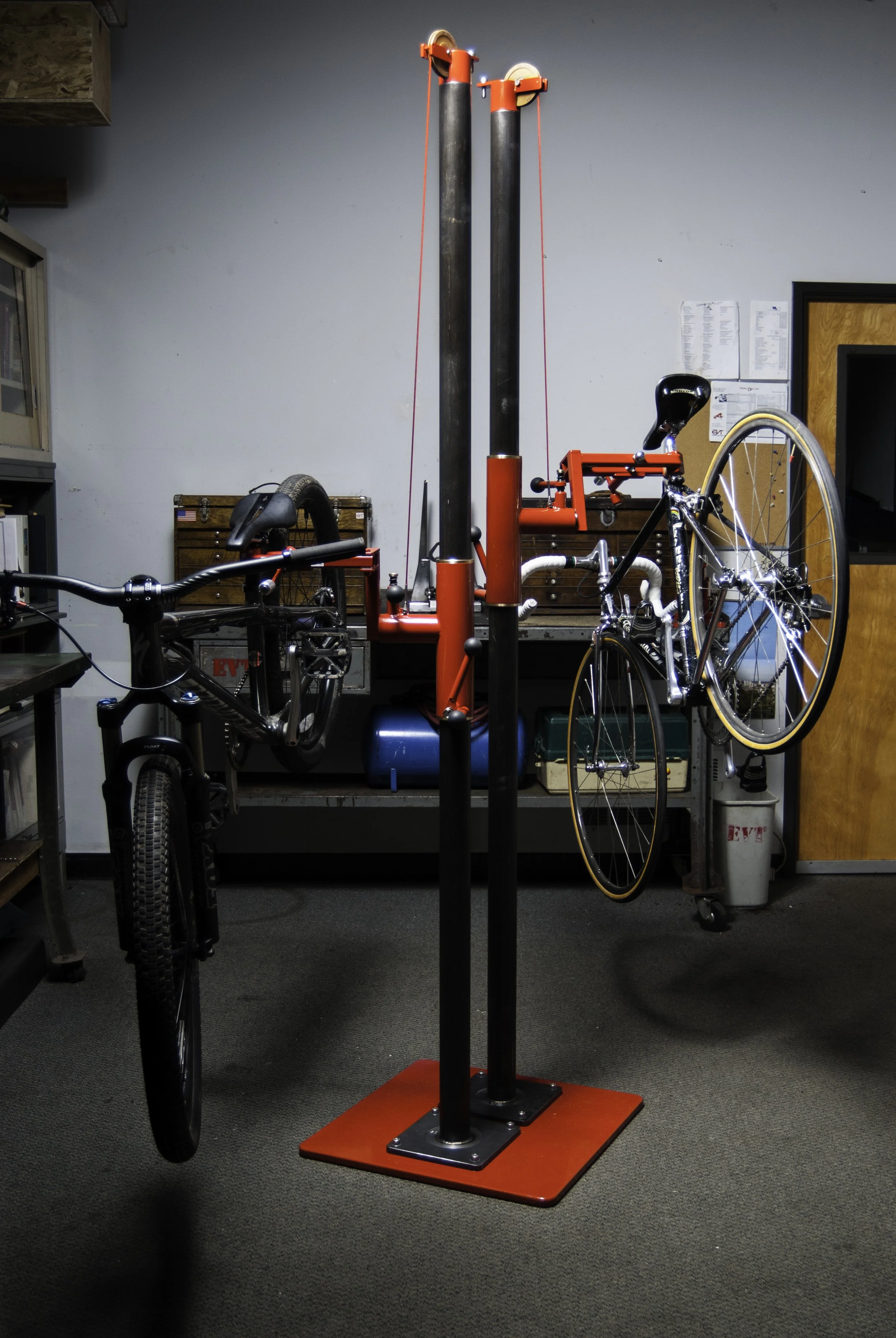

    • EZ-Lift Twin = two stands mounted to a single baseplate.

  • Perfect for servicing E-Bikes and heavier bikes without straining.

Configuration:
Add To Cart

Intended for bicycle shops, or the serious home shop enthusiast, this stand makes repairs simple and the included Right Arm features seatpost-only clamping and offset rotation.

  • Warranty: Unparalleled Lifetime Warranty.

  • Ergonomically-friendly, easily adjusting from the floor to more than seven feet to ensure ideal posture for repairs of all bicycle areas.

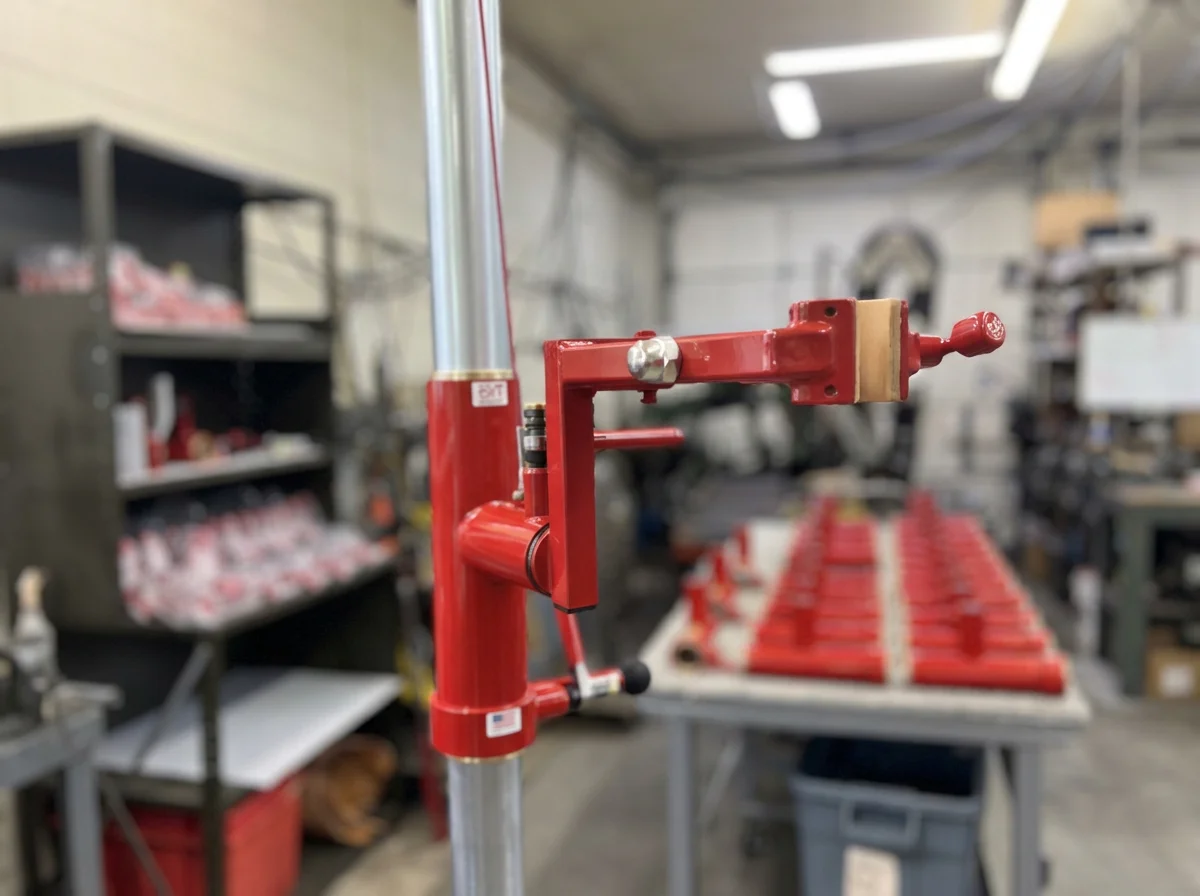

  • Right Arm Repair Clamp is compatible with all seatposts and features balanced rotation that takes up minimal space.

  • Only 2" of exposed seat post required - no more raising the seat to place your bike in a work stand! Never lose your seat height adjustment again!

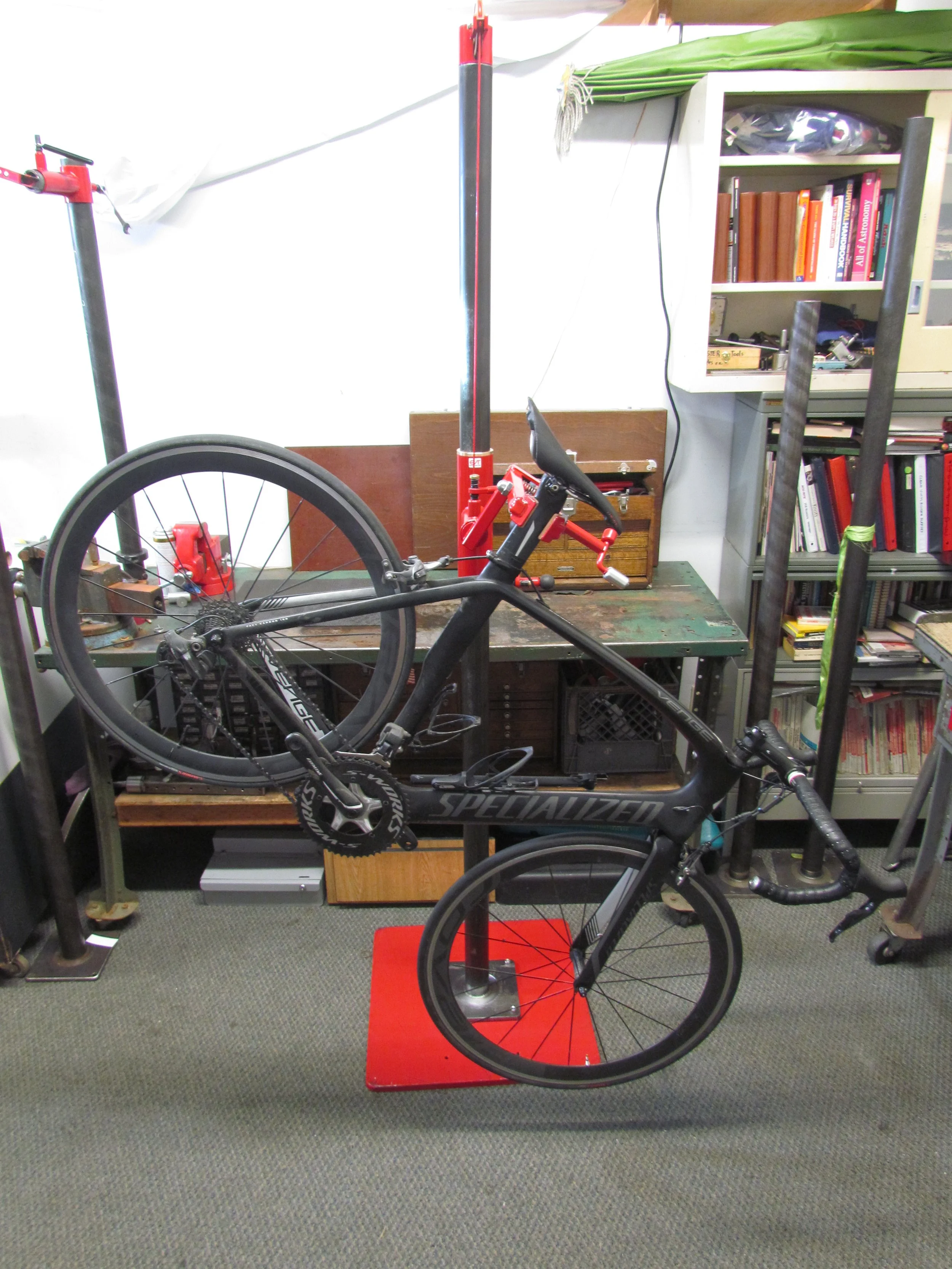

  • Clamp the bike on the floor before you lift. No more supporting and stabilizing the bike while you try to clamp it!

  • Handmade in the USA of the finest materials, and is available in the signature EVT red so your customers know your shop is EVT-equipped.

  • Conservative estimates show one EZ-Lift Repair stand saves a busy service department at least 78 hours per year.

EZ-Lift Repair Stand Features and Specifications:

– Counterbalance system provides approximately 18 lbs of lifting assistance.
– Versatile design can be used for a variety of bicycles, from road bikes to e-bikes.
– Mechanism is air-damped to control speed.
– Close tolerances ensure minimal friction, and fingertip pressure is enough to position the clamp.
– Bronze bushings smooth action.
– Base features rounded edges.
– Color: Signature EVT Red.
– Custom colors are available at an additional cost, please contact an EVT sales representative for more details.
– Freight shipping is an option for orders of six or more stands.

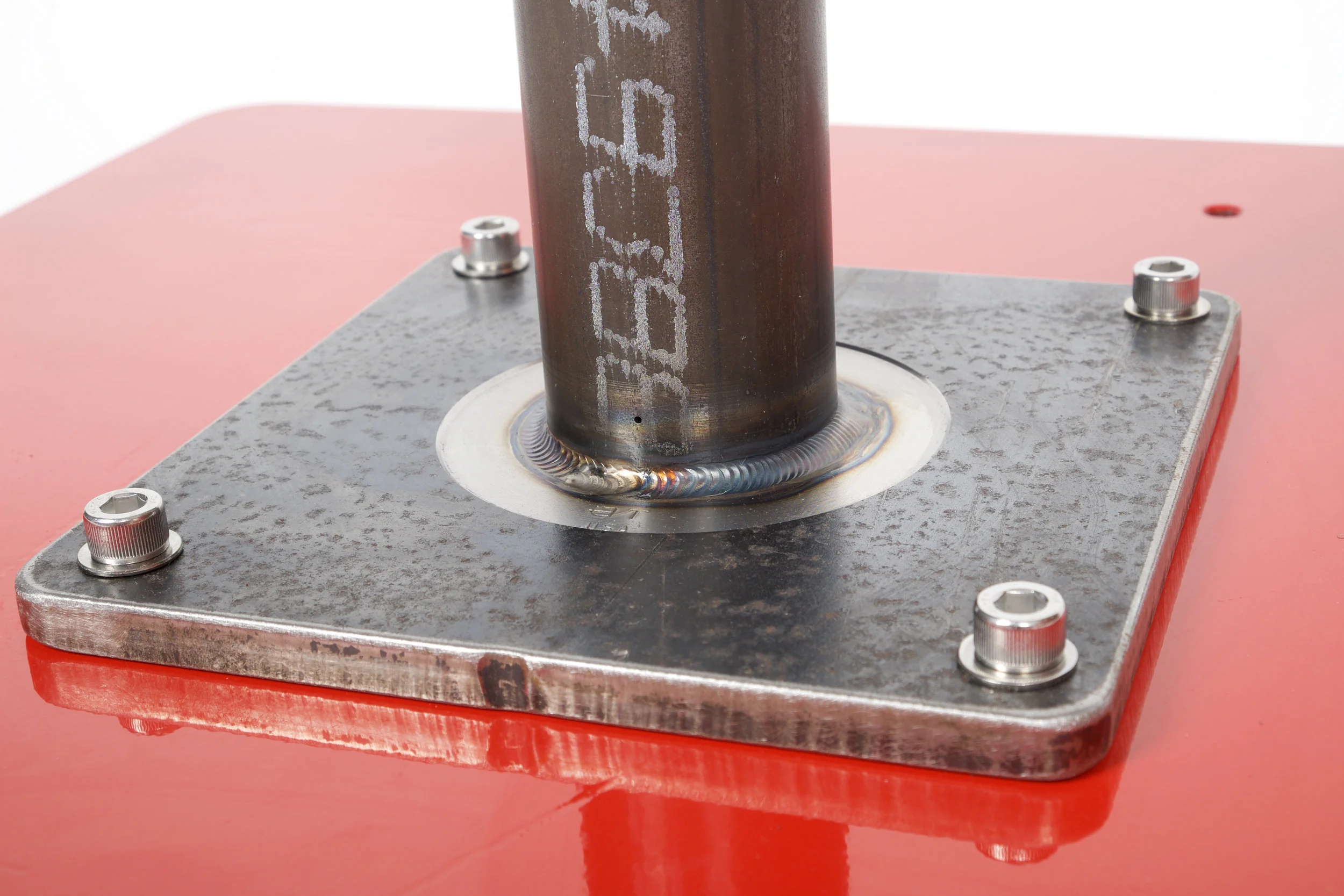

– Baseplate comes pre-drilled for a variety of configurations: Single stand mounted on center, single stand mounted off-center, two stands mounted back-to-back, or two stands mounted side-to-side

EZ-Lift Repair Stand Specifications:

– Total Repair Stand Height (from floor to top of pulley): 89.5”
– Can be cut shorter to fit shops with lower ceilings, please inquire for details.

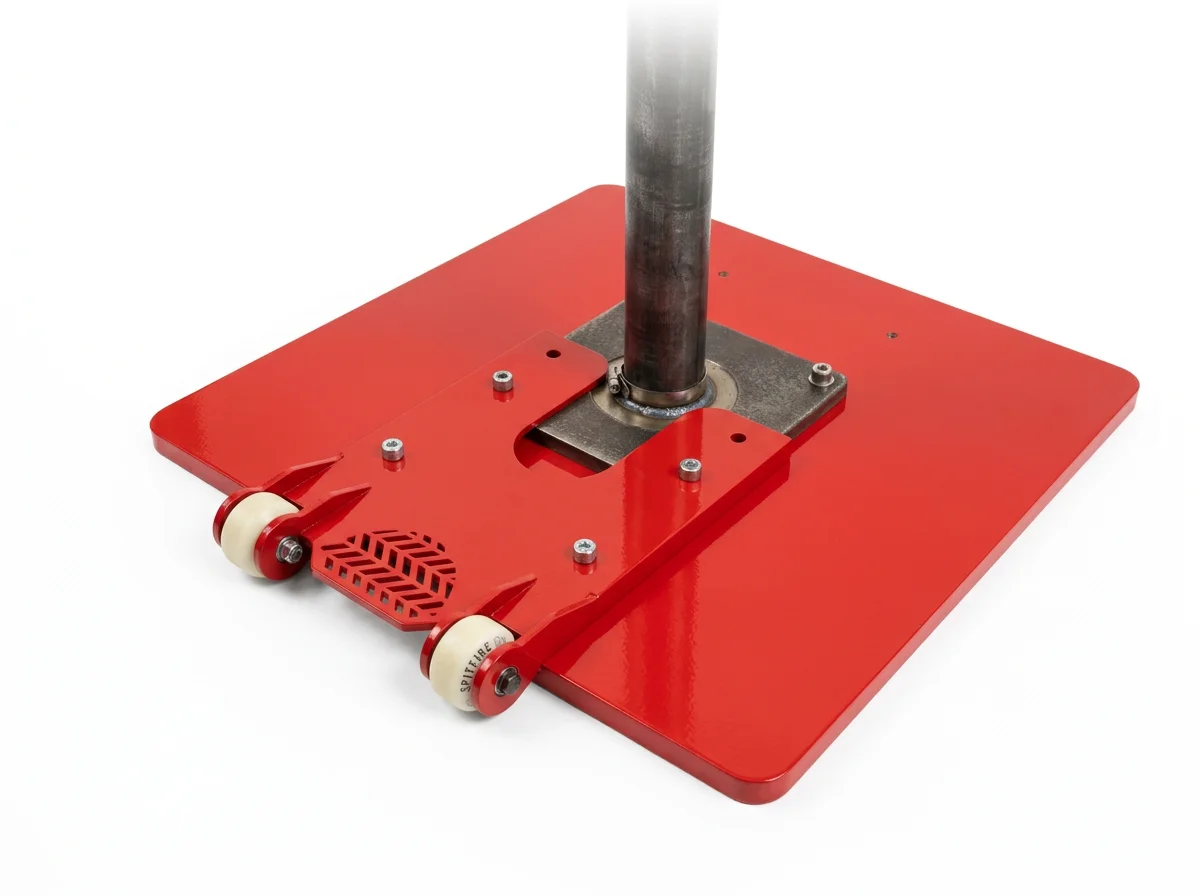

– Baseplate Dimensions: 22.5” x 22.5” x .75”.

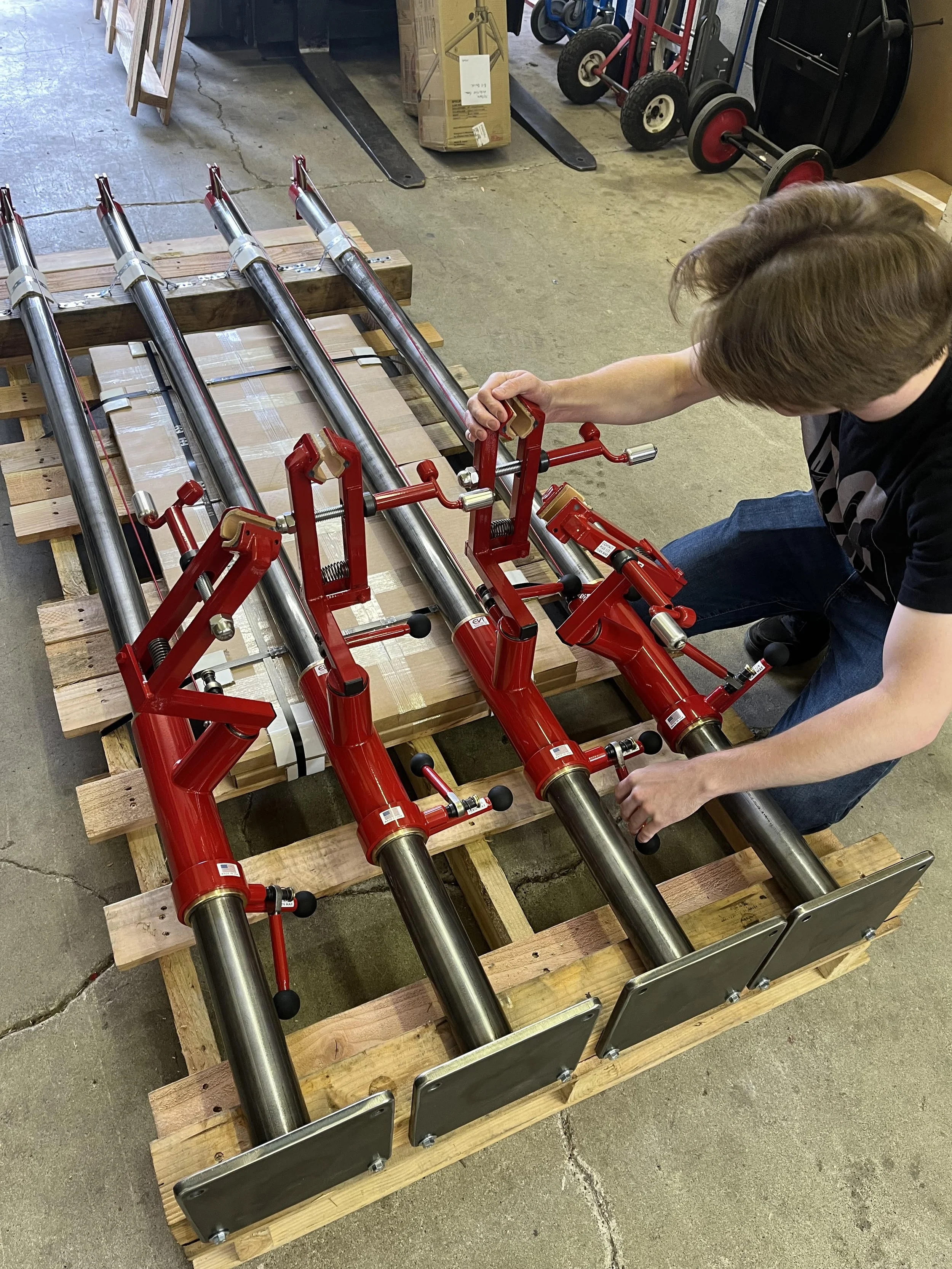

– Shipping Weight and Dimensions (Three Total Boxes):
– Small Parts: 22 lbs, 17” x 13” x 11”
– Main Column: 69 lbs, 85” x 9” x 9”
– Baseplate: 112 lbs, 23” x 23” x 1”

*Signature Series tools are one-price-for-all, and are not intended for resale. This means the price for Signature Series products is the same for both qualified professional bicycle mechanics and general consumers.
