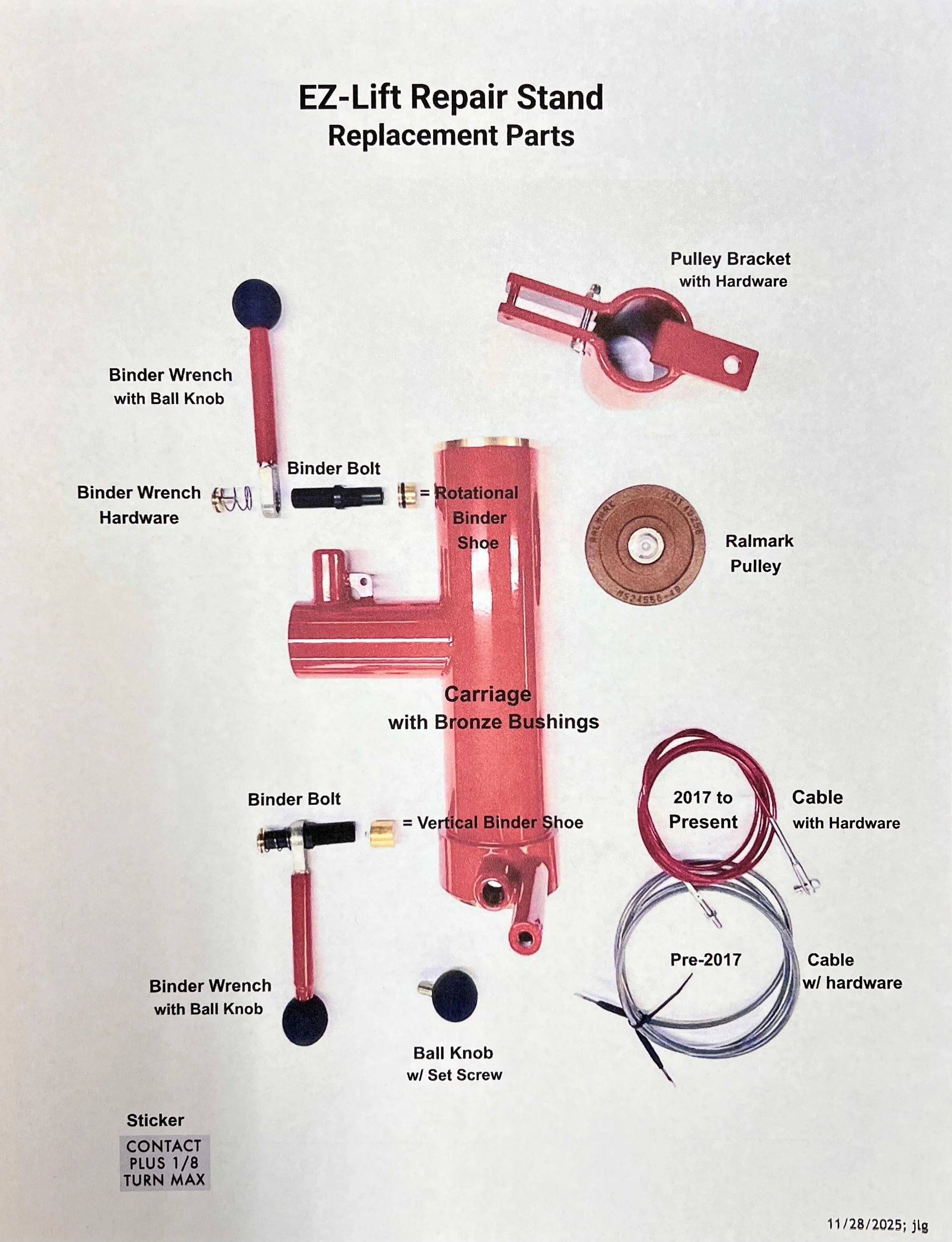

Pulley Assembly Parts

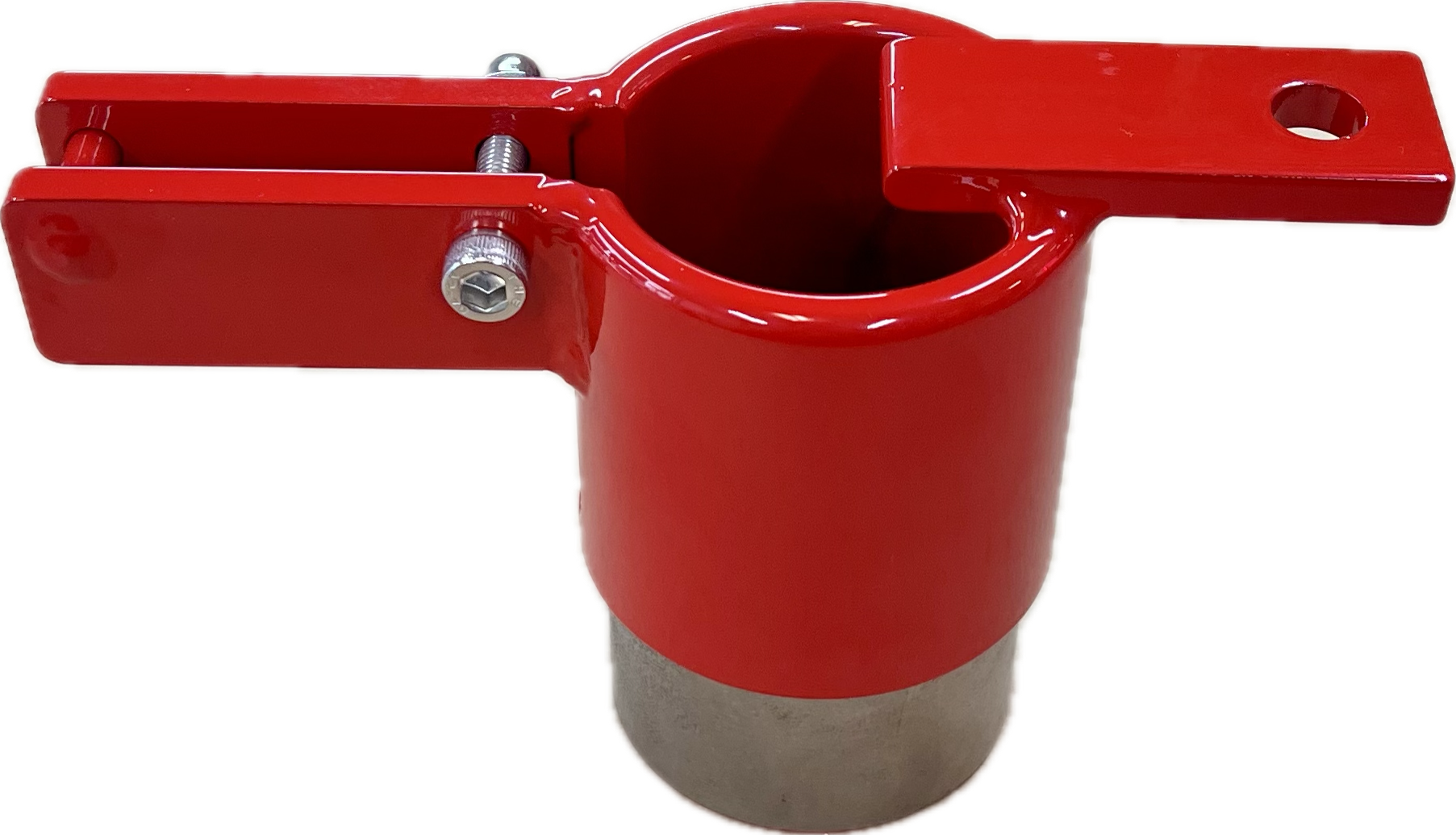

Pulley Bracket w/ Hardware: Powder-coated Pulley Bracket with Pulley Bolt & Nut.

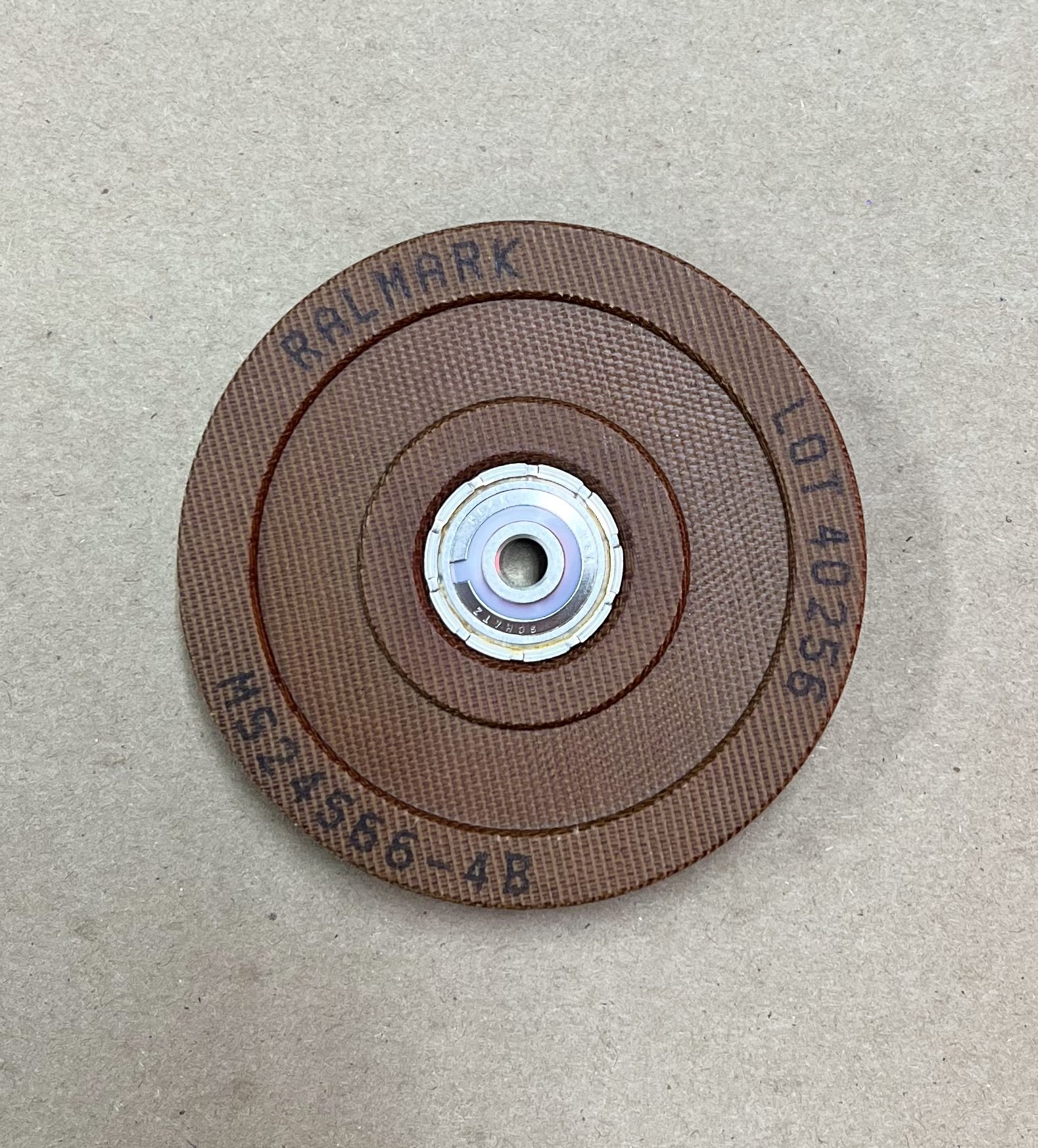

Ralmark Pulley: Anti-friction bearing aircraft pulley from Ralmark Corp.

Cable with Hardware: Pre-2017 Cables are grey. 2017 to Present Cables are red. Their attachment points on the Receptacle are different. For help in determining which cable is needed, please contact us at info@efficientvelo.com.

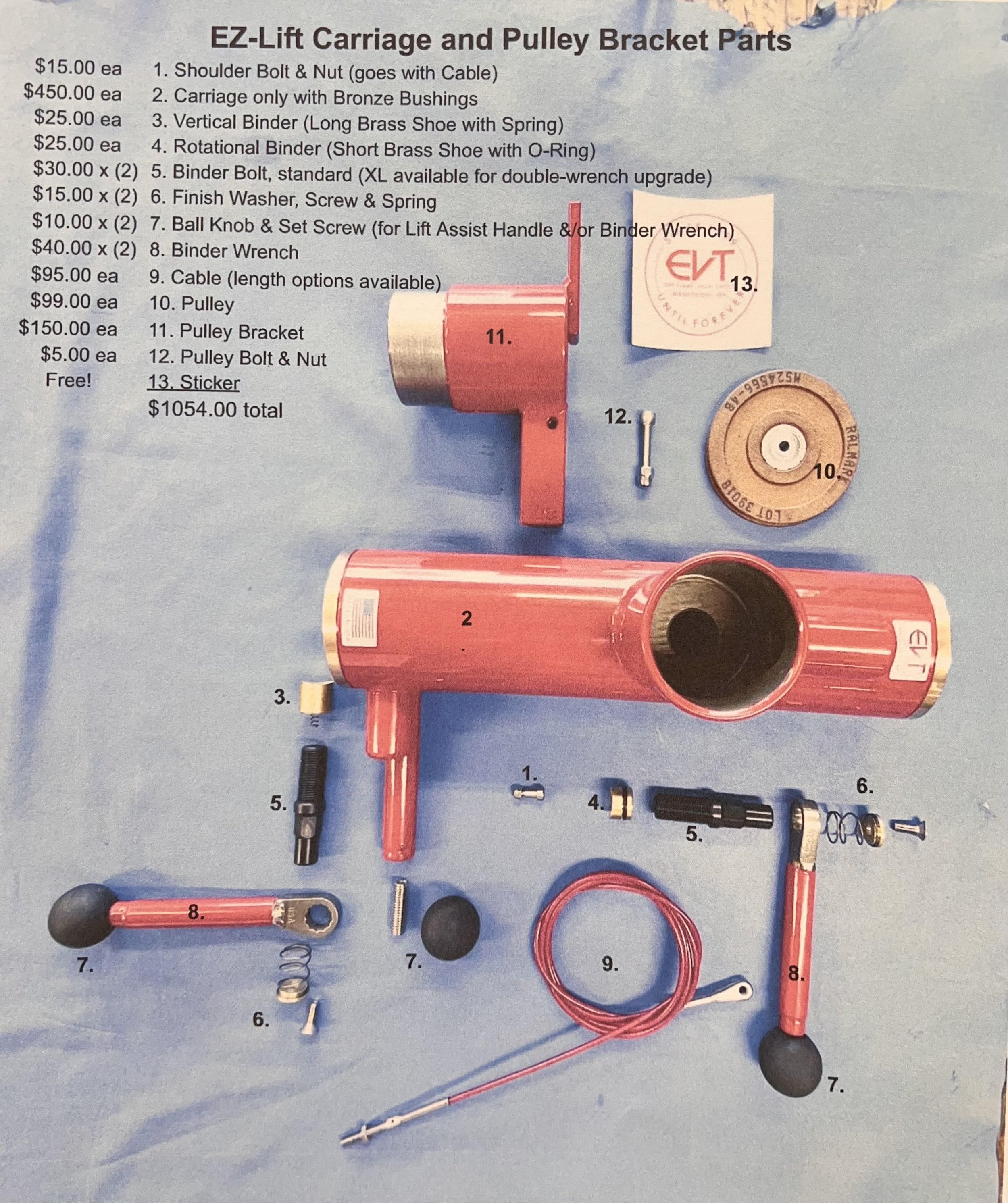

Carriage Parts

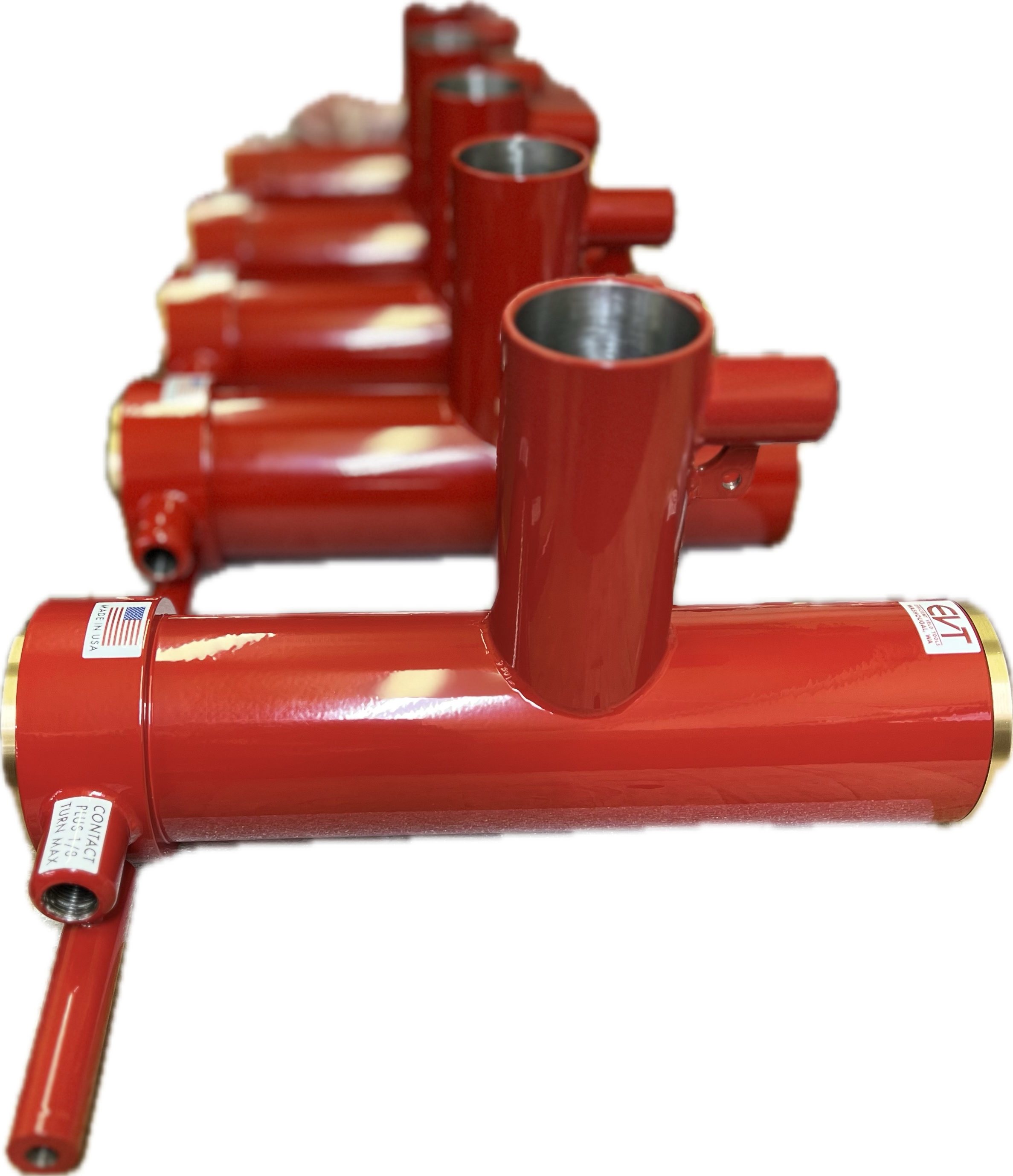

Carriage with Bronze Bushings: Now made with a reinforced collar to withstand rigorous usage in a busy professional setting.

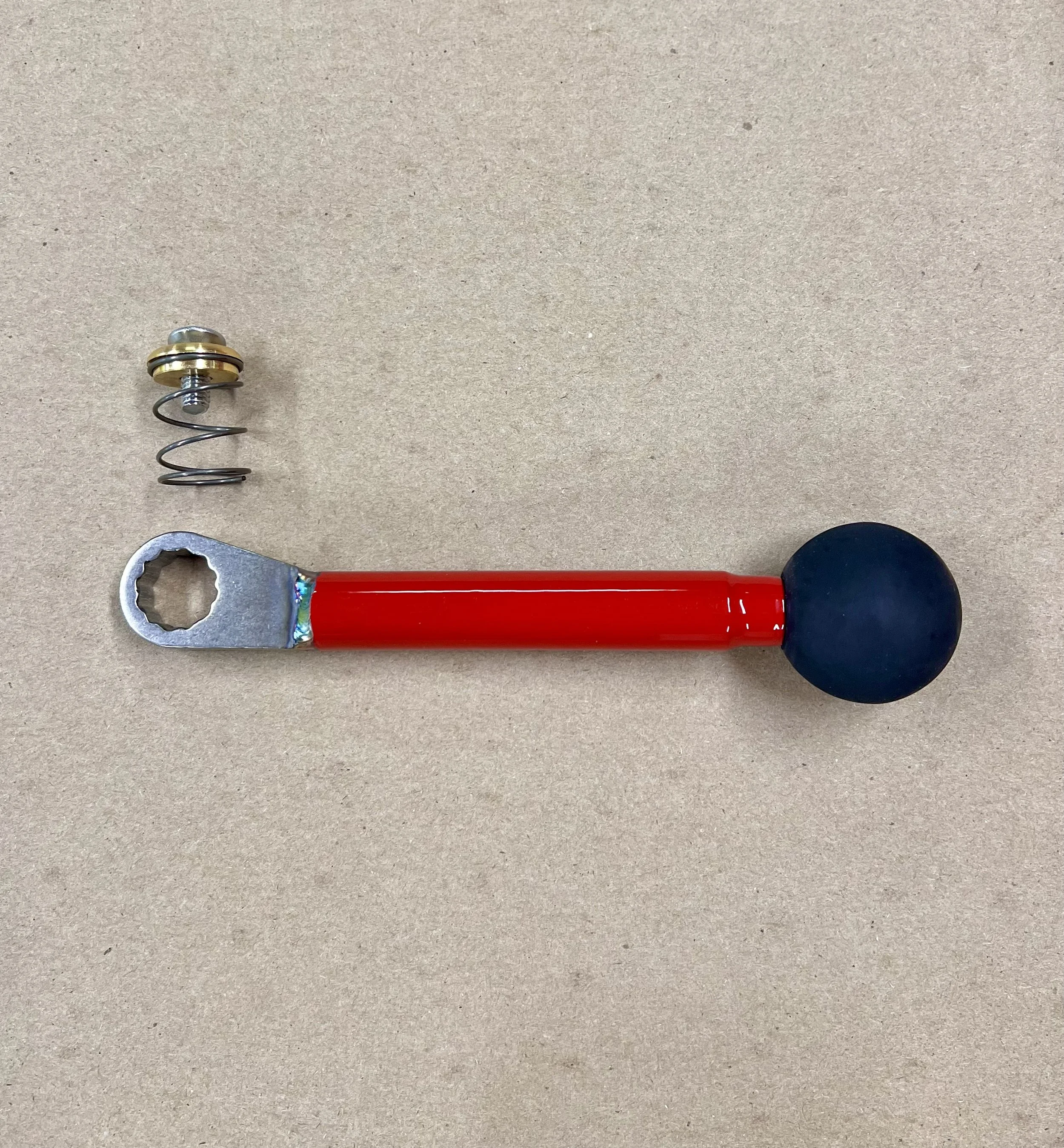

Binder Wrenches with Ball Knob: One goes with the Right Arm Receptacle and one goes with the EZ-Lift Carriage & Tube. If this item needs to be replaced, you may also need the hardware that goes with it (see below).

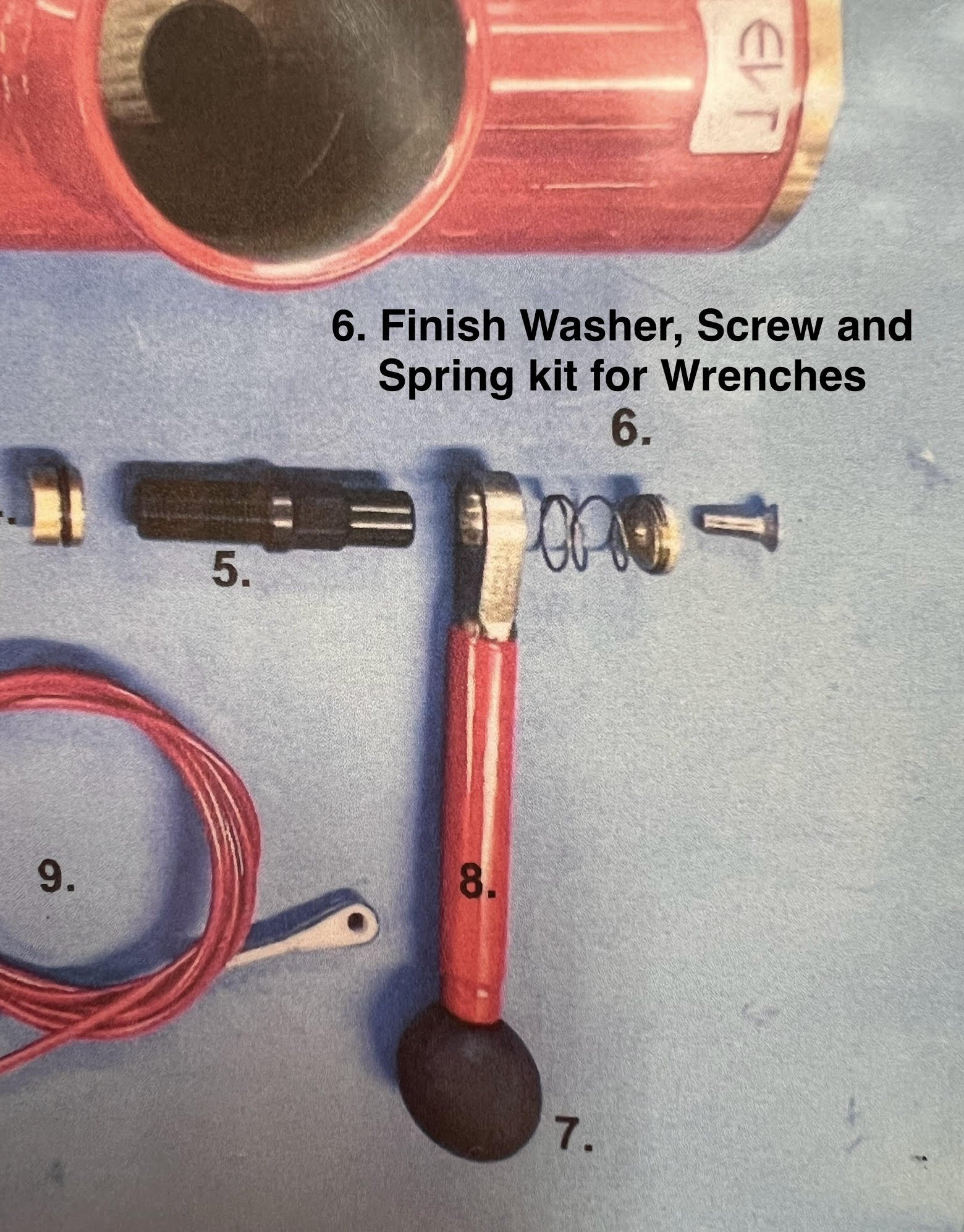

Binder Wrench Hardware: Finish Washer, Screw & Spring for Binder Wrench. Sold by set

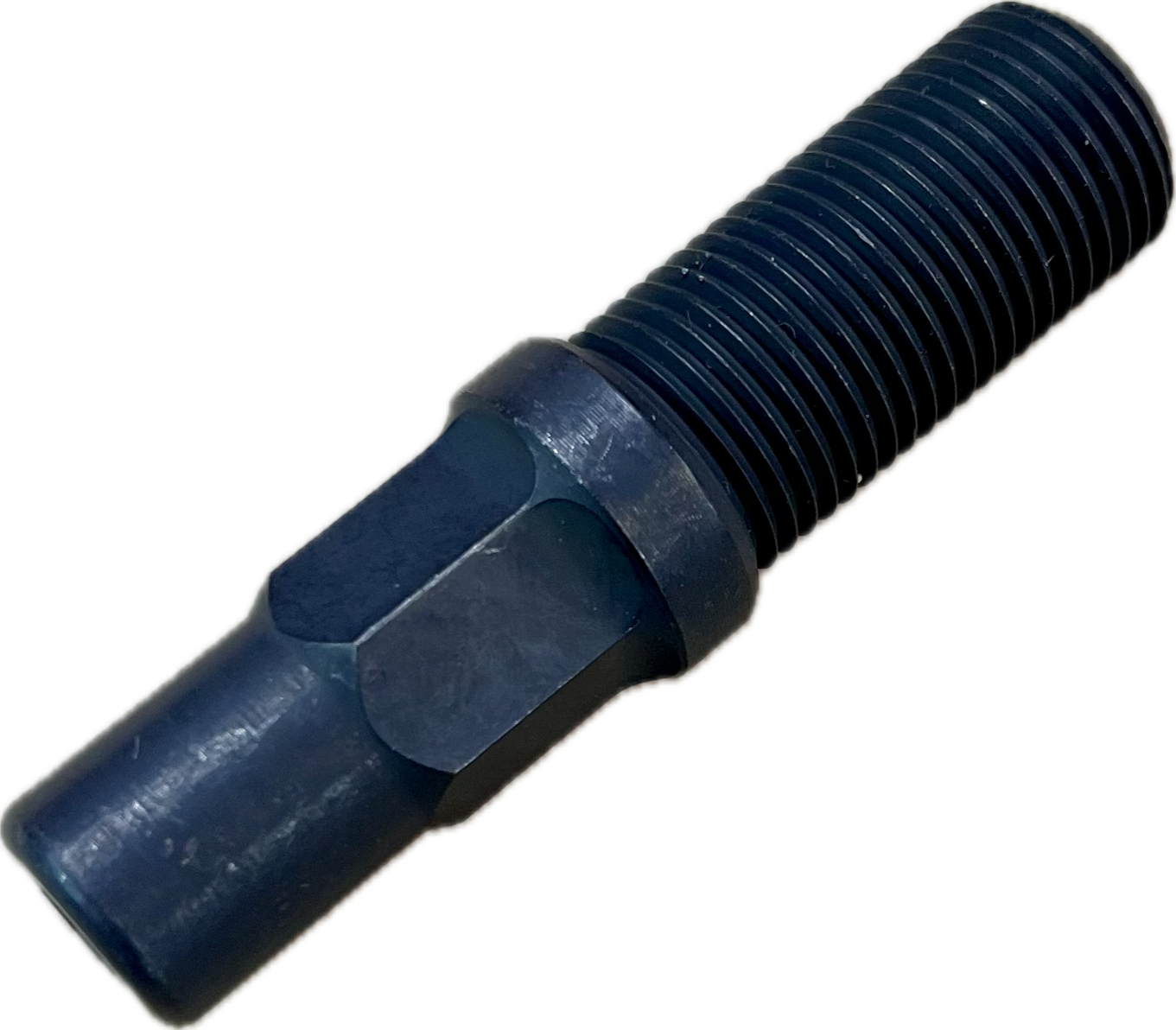

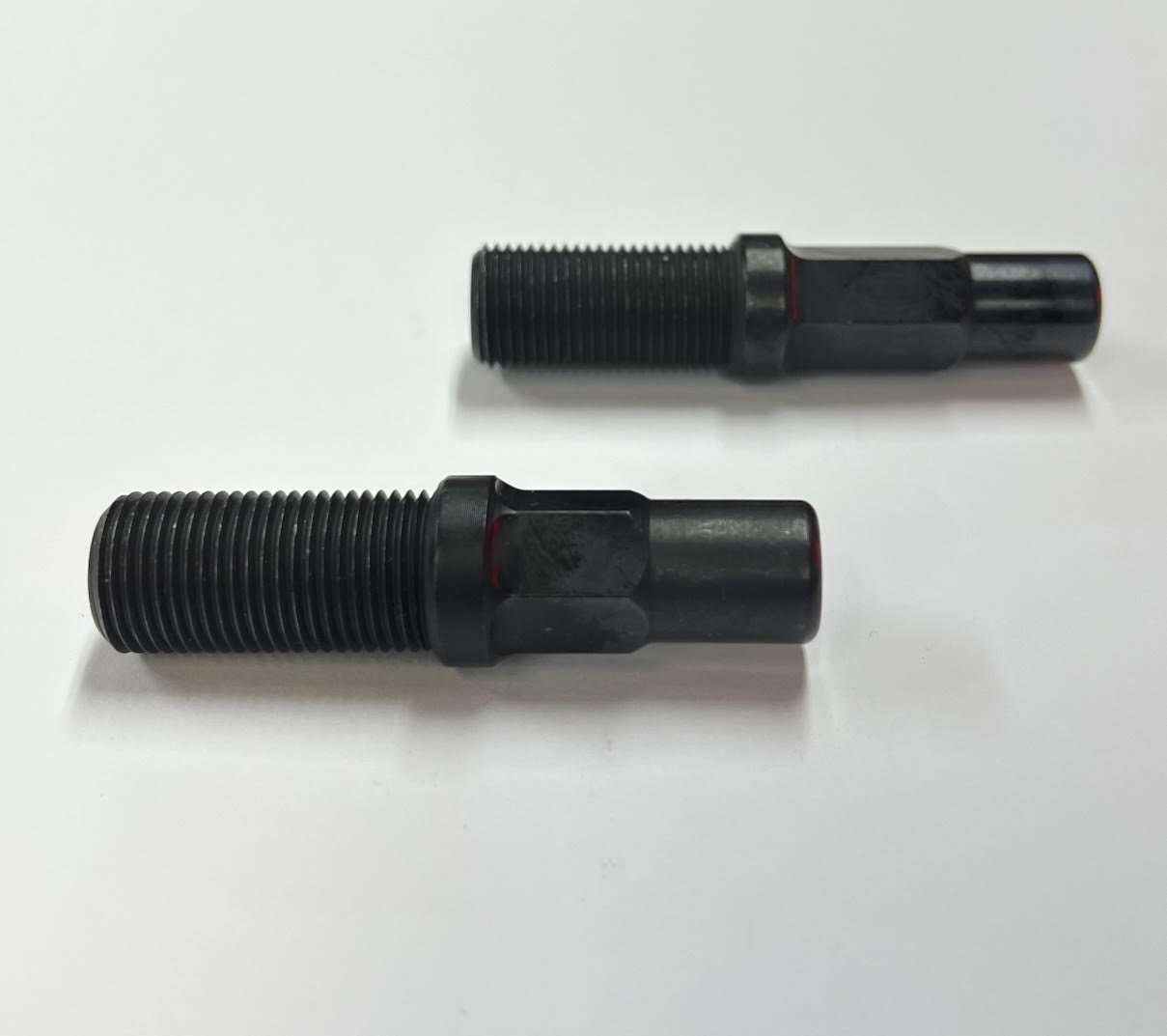

Binder Bolt: Each Binder Wrench needs a Binder Bolt.

Rotational Binder Shoe: This short brass shoe with o-ring is used in the Right Arm Receptacle. It can sometimes fall out and get lost, especially while moving your Stand.

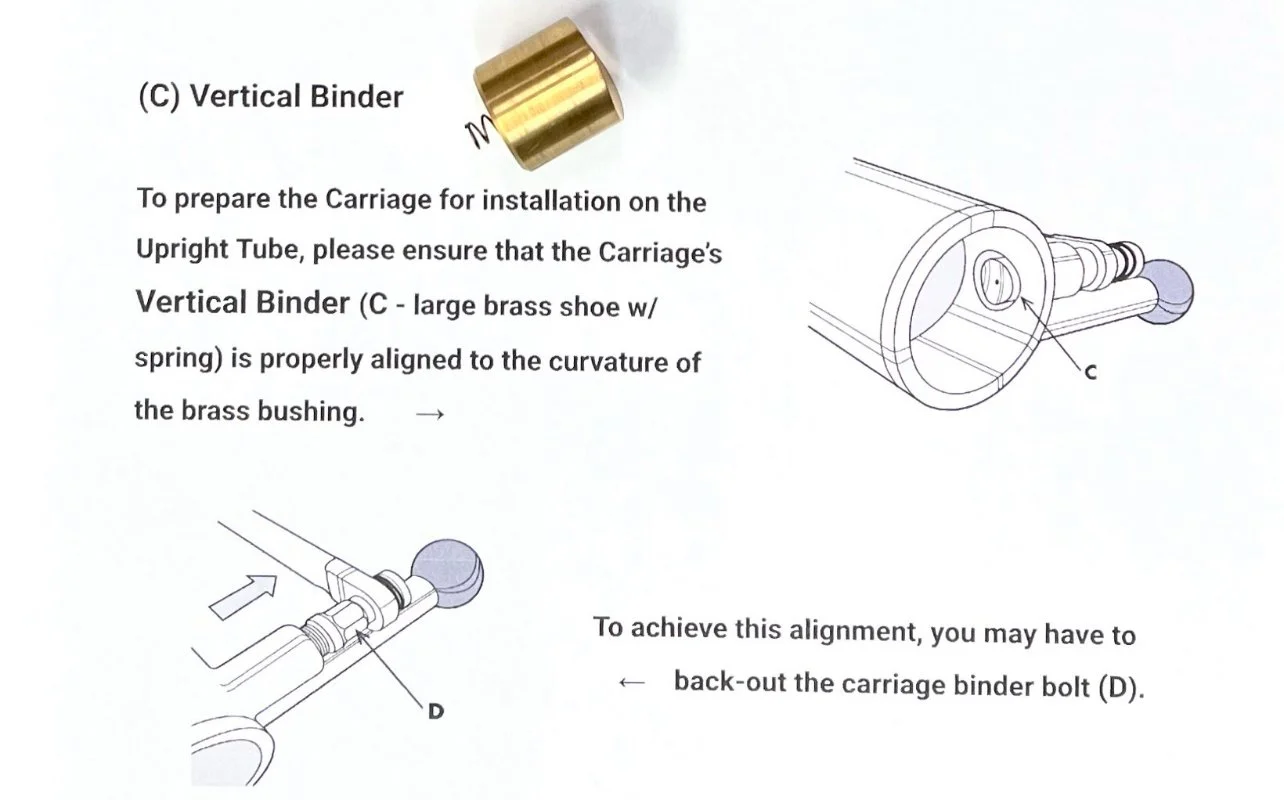

Vertical Binder Shoe: This long brass shoe with spring is used in the Carriage Assembly of the EZ-Lift.

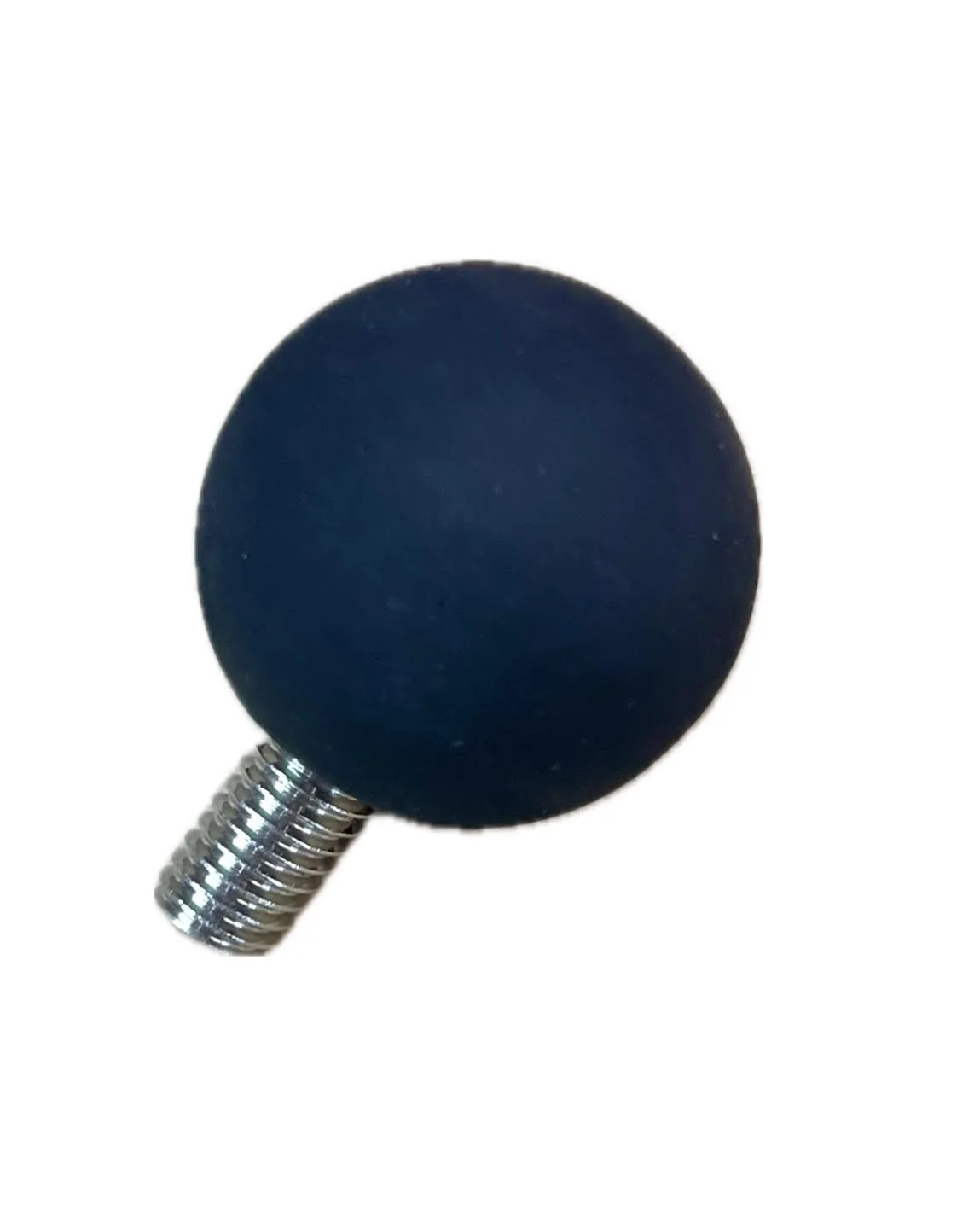

Ball Knob with Set Screw: Replacement Ball Knobs are available.

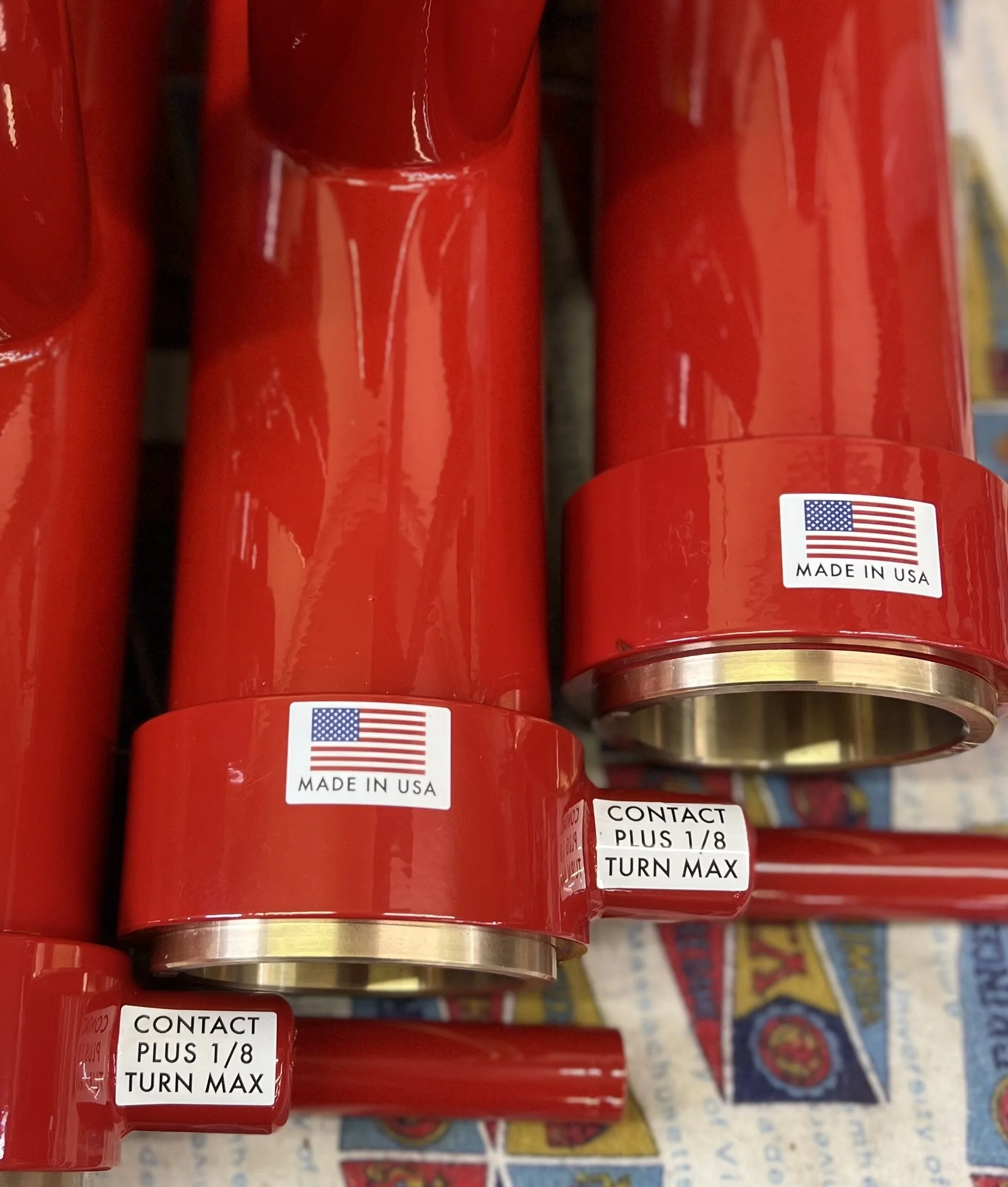

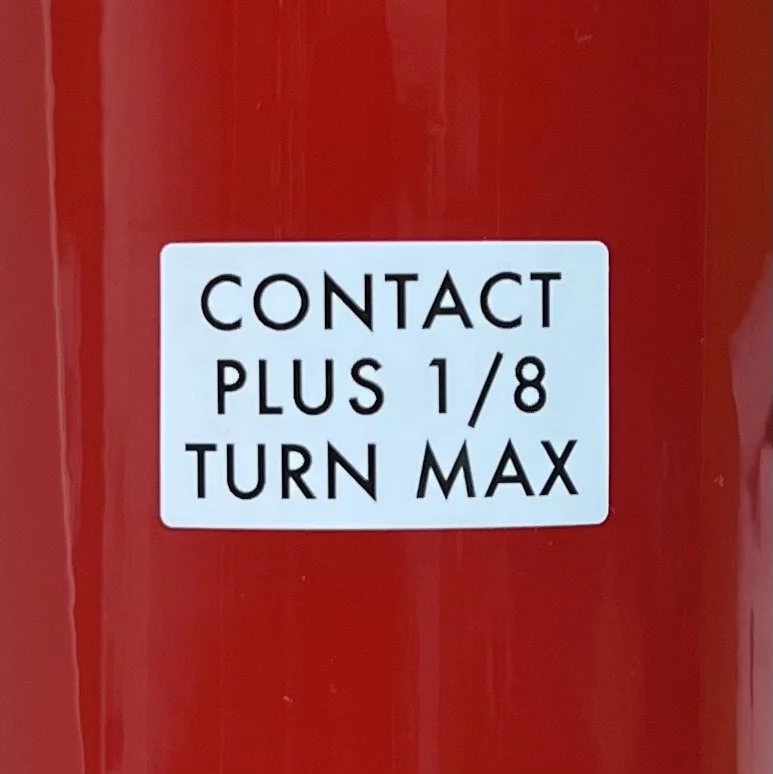

(new) Contact Plus ⅛ Turn Max Sticker: A reminder not to over-tighten the Binder Wrench on the Carriage which could cause cracks or damage.

Other Parts

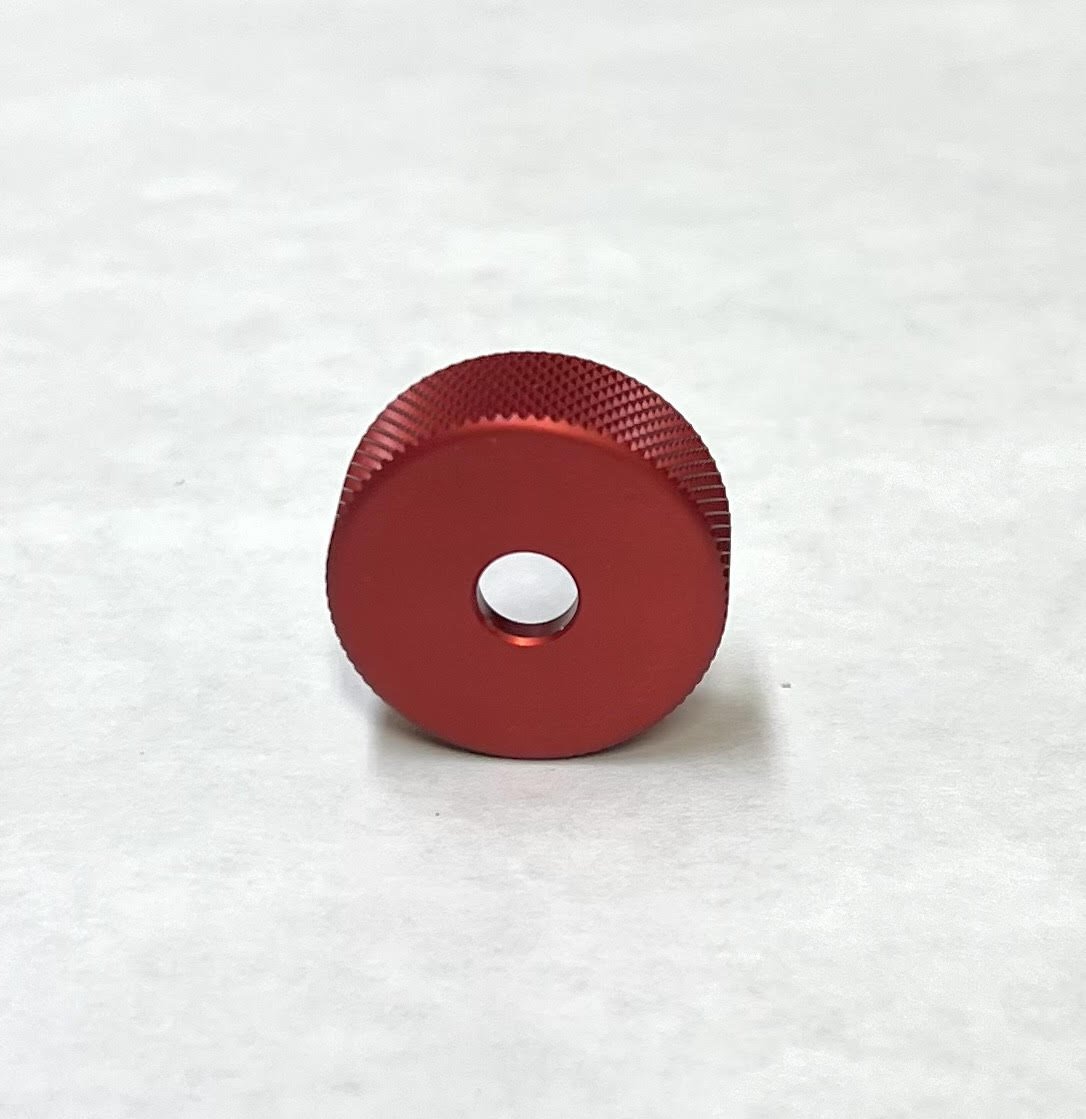

Presta Cap: The Presta Cap is a proprietary part used on almost all of our inflation tools: The 2-in-1, Bam-Bam, Presta Only & Idiot Proof Inflators.

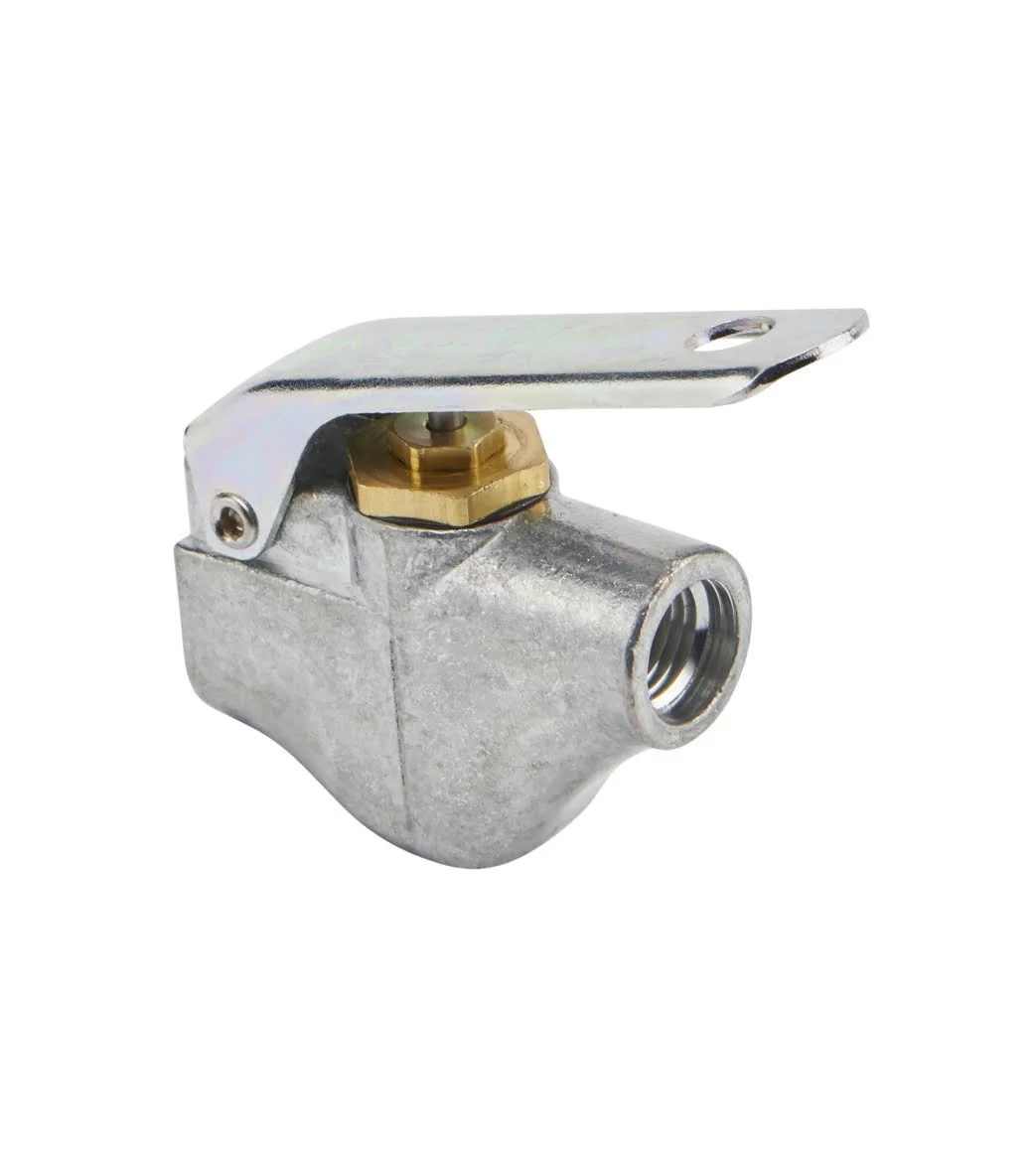

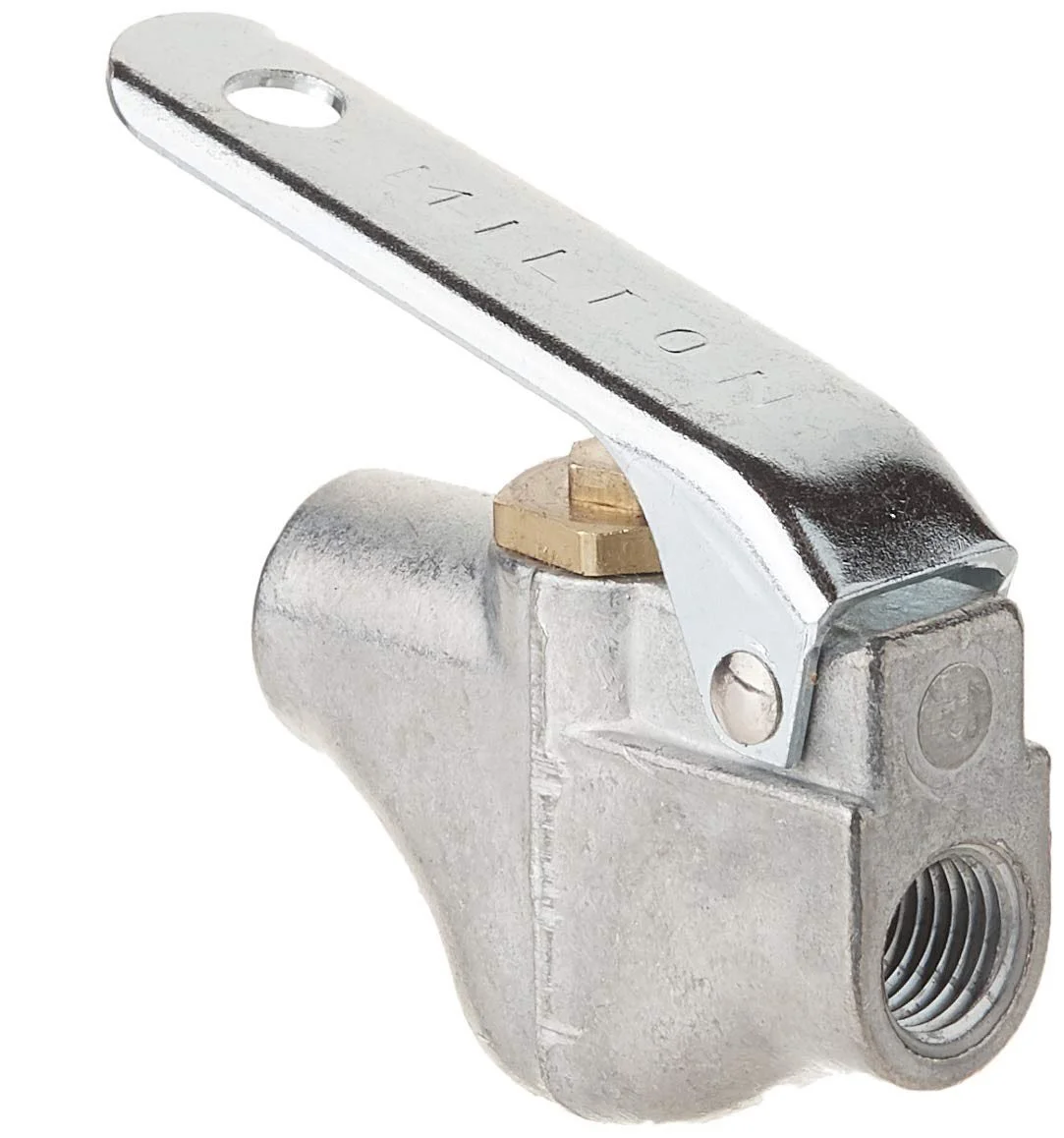

Lever Valve: A Milton brand replacement lever valve for your EVT Inflation tool. If your lever valve is leaking air, you can do a bit of maintenance. Disconnect the inflator from its air source. Remove large brass nut from lever valve and inspect / clean the plunger of the lever valve. Take care not to damage the o-ring. If the o-ring needs replacement, they are a standard size and available at hardware stores. If this fails, you may need a new lever valve!
