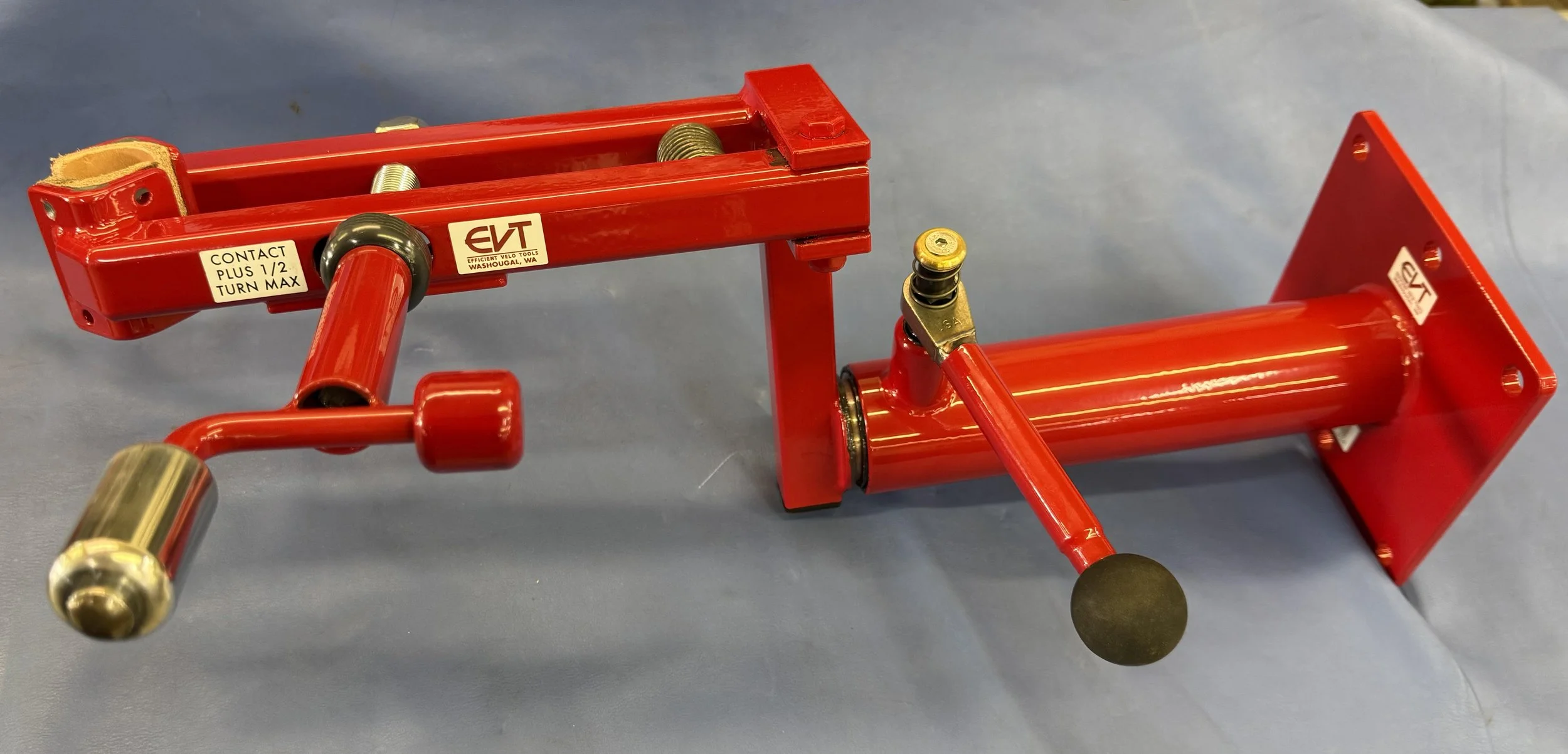

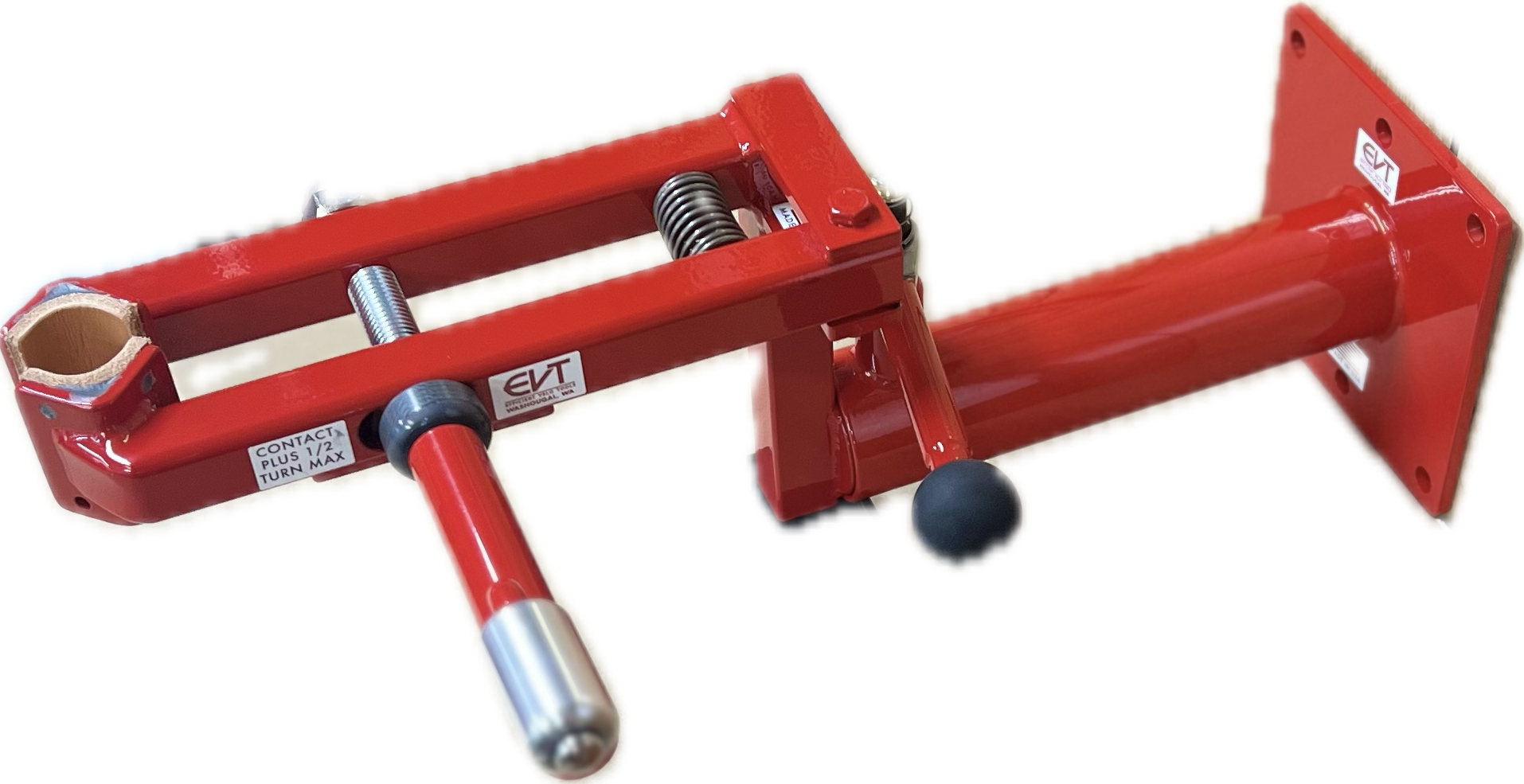

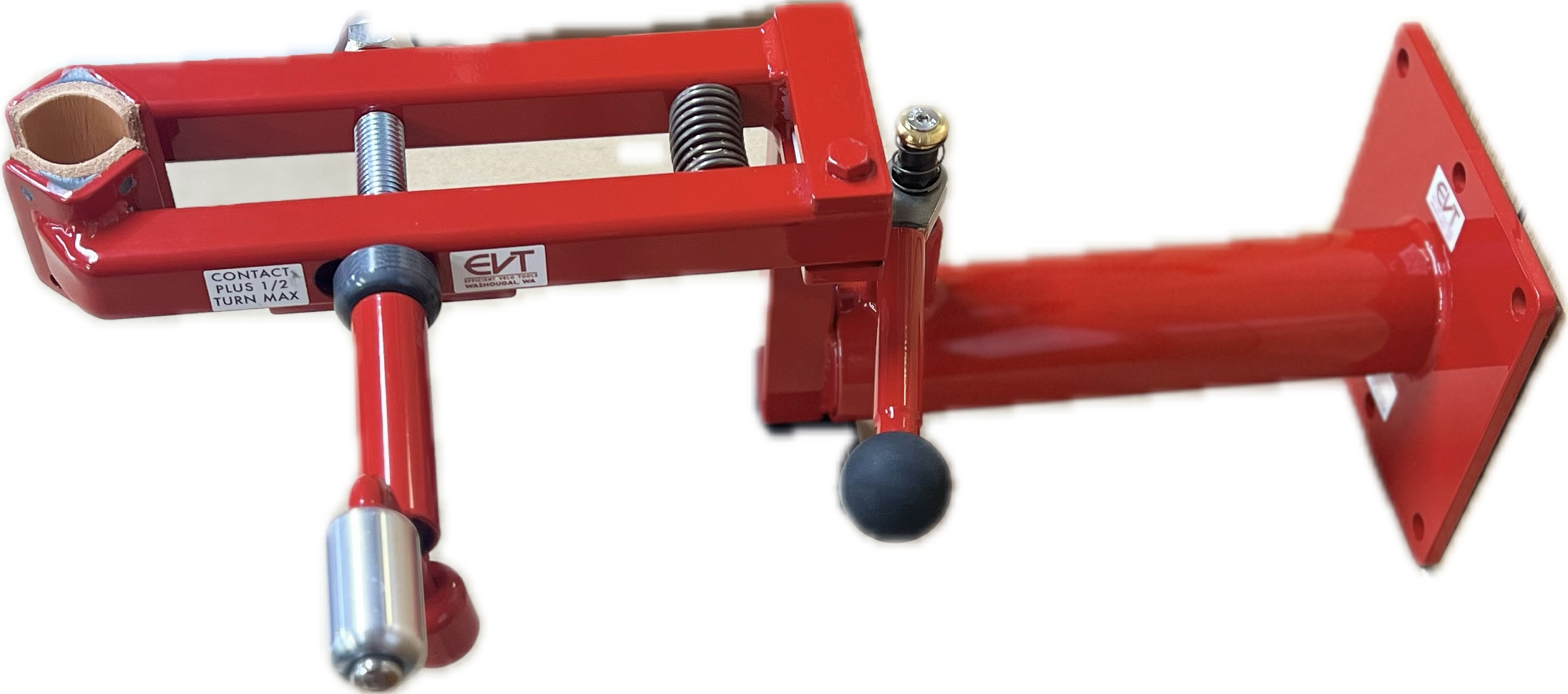

Fixed Height Wall Mount with Clamp

Choose your Clamp: a Domestic-made Right Arm or a Minoura of Japan Right Arm

Characteristically durable and precisely machined, this complete repair solution is perfect for a customer work area or for shops wanting to save space and still have enough repair clamps to get the job done!

The Fixed Height Wall Mount has recently been elongated (previously 5.5”) and now measures 9.25" from the wall to the end of the Receptacle where the Right Arm is inserted. The mounting plate is 5/58” square. The (6) mounting holes are 4.5” from center to center. The center of the clamp is 18.75" from the wall.

Note: You may source and use spacers or stacked washers to create distance between the wall and the plate as desired.

SHIPPING: Please note, our website is unable to accurately calculate Shipping & Handling. Therefore, you will be paying for the equipment up front, and for the S&H just before we are ready to ship.

Q: Can I convert my Fixed Height Wall Mount into a lifting stand?

A: The carriage unit on the wall mount is not designed to be converted to a lifting stand. Unfortunately, there is no solution.

Any questions? Please let us know info@efficientvelo.com
